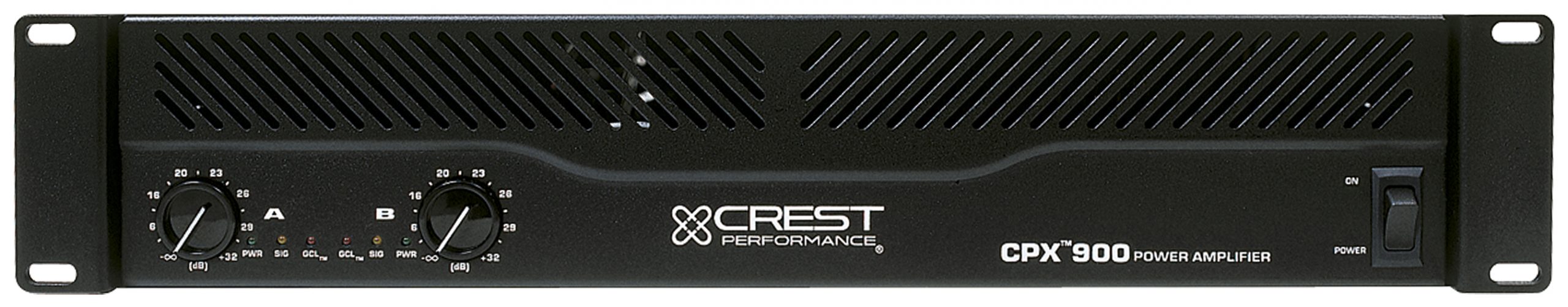

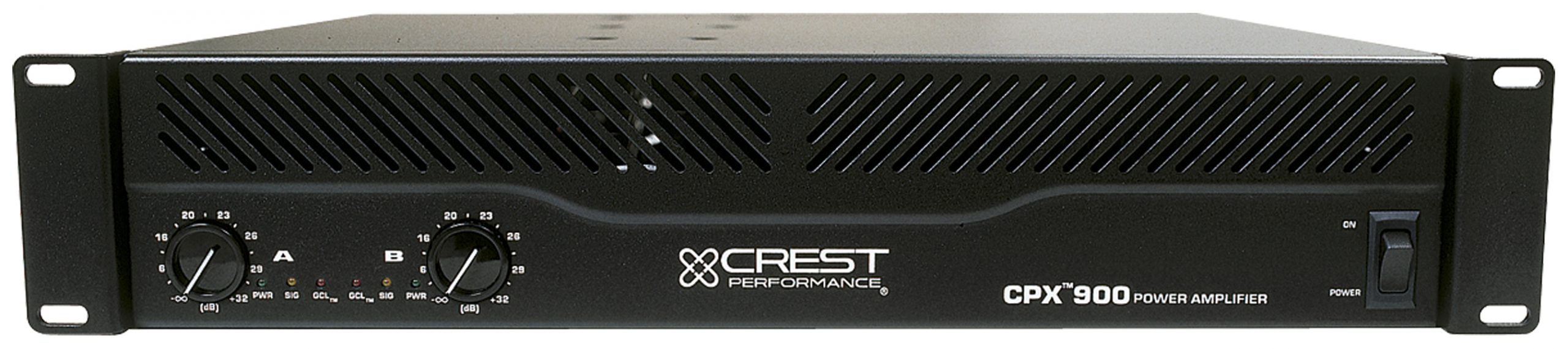

CPX™ 900

Professional Install & Touring Power Amplifer

Description

The CPX™ is an affordable line of amplifiers geared toward the install and MI markets. A tradition of great sound quality, flexibility and reliability is carried over into the Crest Performance series. Industry standard connectors and features make the CPX a great backbone for mobile sound systems, project studios and many other applications. Musicians will also find CPX as the power amp of choice.

With a comprehensive set of features including built-in signal limiting, low pass filters and low frequency crossovers with direct outputs, the CPX line addresses several applications and serves as a low-cost solution for most power amplification needs.

Features CPX 900

• 450 Watts @ 2 Ω per channel

• 300 Watts @ 4 Ω per channel

• 180 Watts @ 8 Ω per channel

• 600 Watts @ 8 Ω bridged

• 900 Watts @ 4 Ω bridged

• GCL Gain Comparator Limiting system with rear panel defeat switch

• Built-in crossover 150 Hz, -24 dB per octave Linkwitz-Riley filter, tuned for subs, individual in/out switches for channels A and B

• 1/4” daisy chain outputs

• Built-in low cut filter -18 dB per octave at 80 Hz, individual in/out switches for channels A and B

• Input connectors – Barrier strip, Female XLR-1/4” Combo TRS

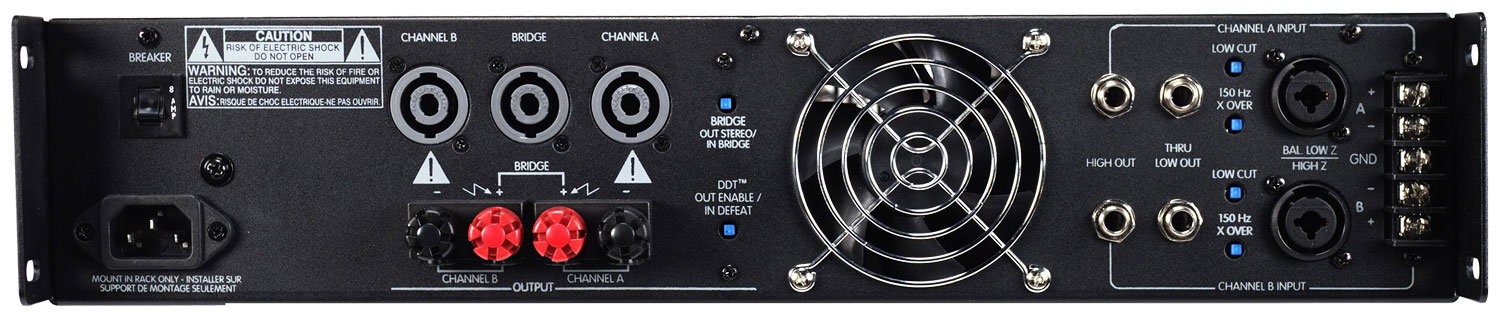

• Outputs connectors Speakon for channels A and B and bridged mono, binding posts for bridge mode

• Mode selector switch for stereo and bridged-mono operation

• Two speed DC fan

Additional information

Channels (Input)

2

Channels (Output)

2

Power per Channel @ 2 Ω

450 W

Power per Channel @ 4 Ω

300 W

Power per Channel @ 8 Ω

180 W

Power per Channel @ 4 Ω Bridged

900 W

Power per Channel @ 8 Ω Bridged

600 W

Topology

Class AB

Minimum Load Impedance

2 Ω

Frequency Response

-3 dB, 5 Hz – 50 kHz; +0

Input Connectors

2 x XLR-1/4" Combo & 4 x 1/4" Jack

Output Connectors

3 x Neutrik® Speakon® NL4 & 2 x Binding Post

Color

Rack Mount (19")

Yes (2U)

Net Weight

40.0 lbs (18.20 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

15.50" (380 mm)

AC Power Input

100, 120, 230, 240VAC, 50-60 Hz version available

SKU

CPX900-AB
