Description

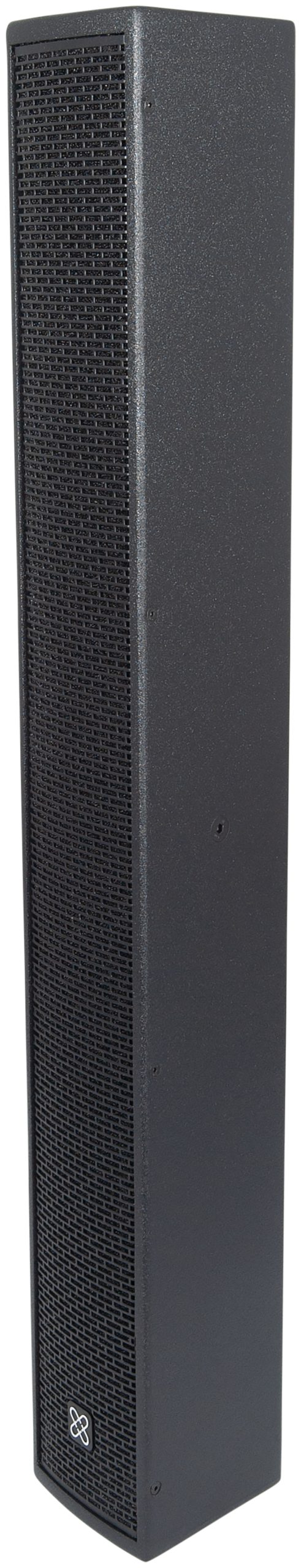

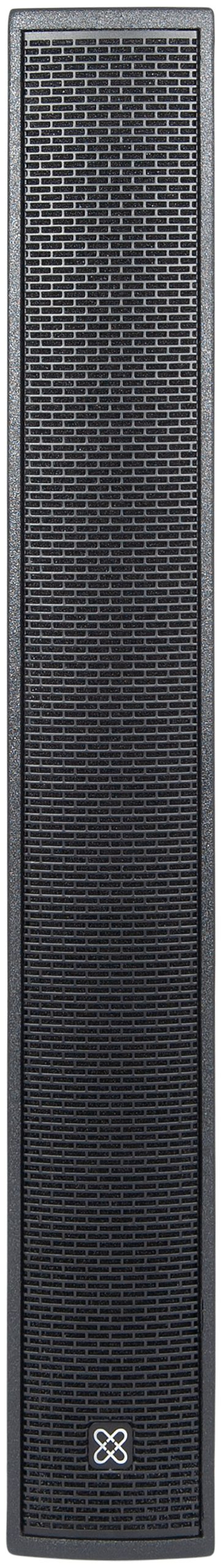

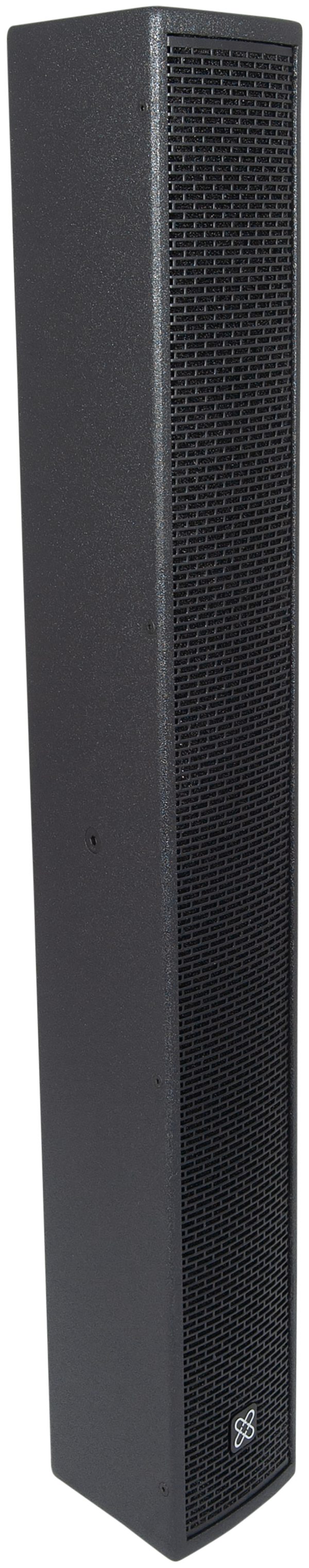

The Crest Audio® CPL™ 8L+ is a compact passive column array loudspeaker designed for high quality transmission of speech, music playback, public address and live performance reinforcement applications where space is at a premium.
The CPL 8L+ can be utilized for both permanent installations and portable live sound applications. Perfect for public address, monitoring and background audio reinforcement purposes typically required in houses of worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high quality discrete audio distribution is required.
The CPL 8L+ is equiped with eight 3 inch full-range Neodymium speakers having a 0.75 inch voice coil. The directivity pattern of the loudspeaker is measured at 90° horizontal and 20° vertical providing a wide yet well controlled audio coverage. Impedance of the loudspeaker is 4 Ohms. Connectivity is made via either two looping 4-pin Twist-Lock or one 4-pin Euroblock connectors.
The CPL 8L+ enclosure is built from prime-grade 12 mm plywood that offers sturdy mechanical and low resonant electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure maximum protection of the internal components. The loudspeaker is equipped with a total of 7 threaded suspension points offering multiple mounting options for various applications. Available in durable black and white finish.
Features CPL 8L+
• Passive column array loudspeaker
• Eight 3” full-range Neodymium speakers, 0.75“ voice coil
• Continuous power handling: 240 Watts
• Nominal impedance: 4 Ohms
• Coverage pattern (HxV): 90° x 20°

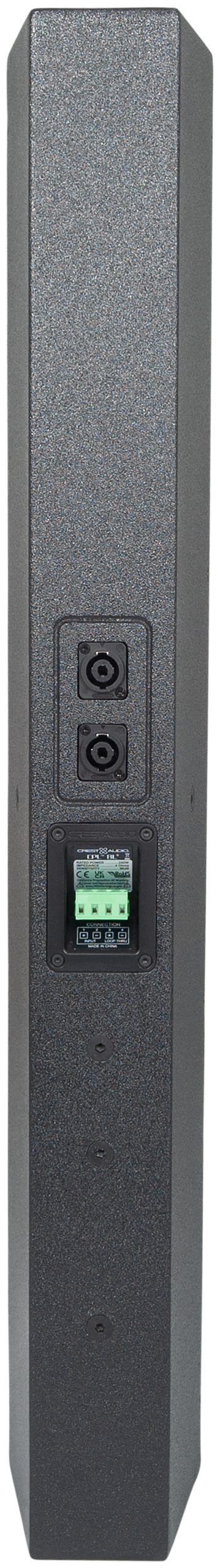

• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
• 2+/2- Loop Through
• 12 mm Plywood construction
• Sealed box system

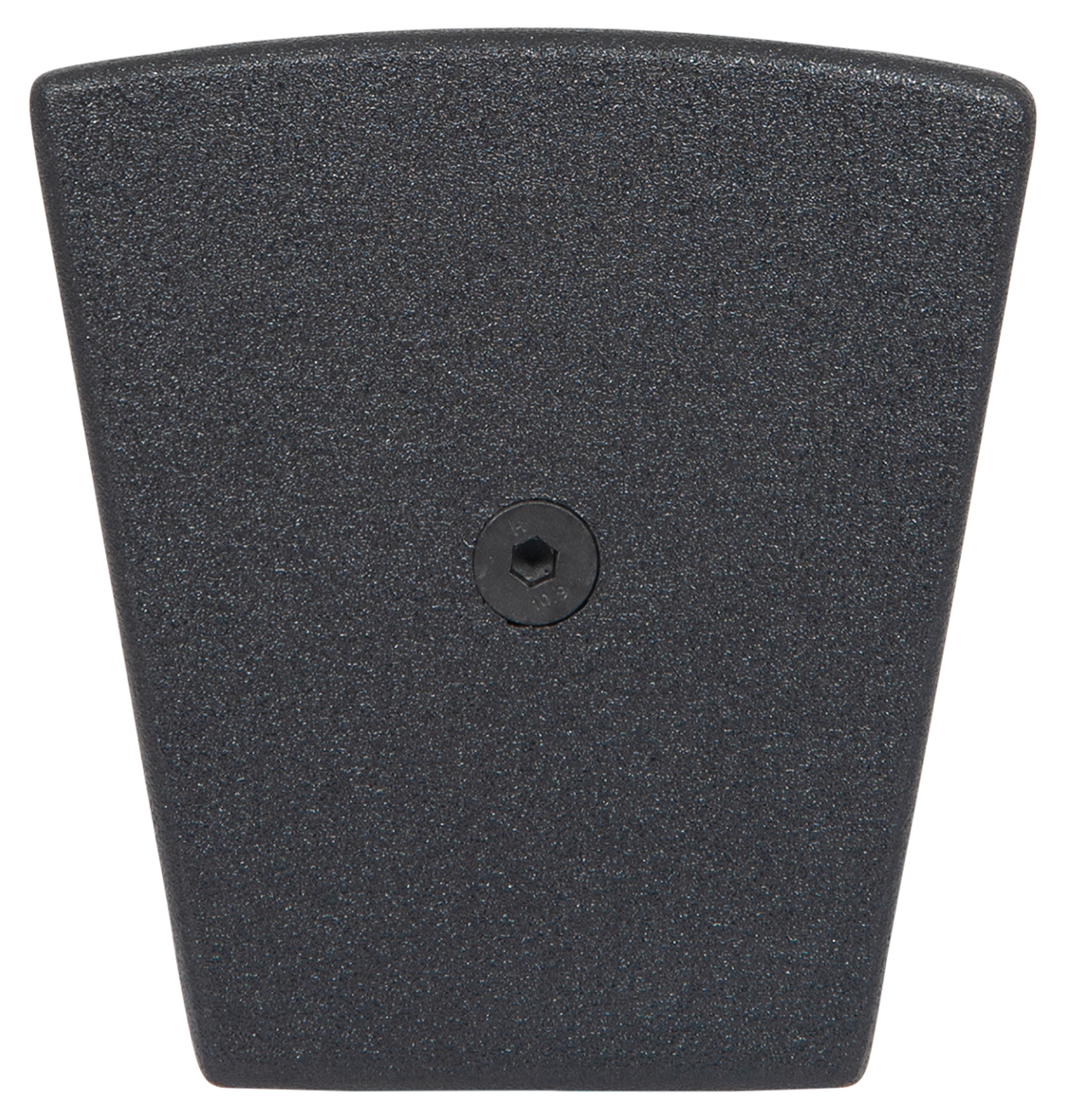

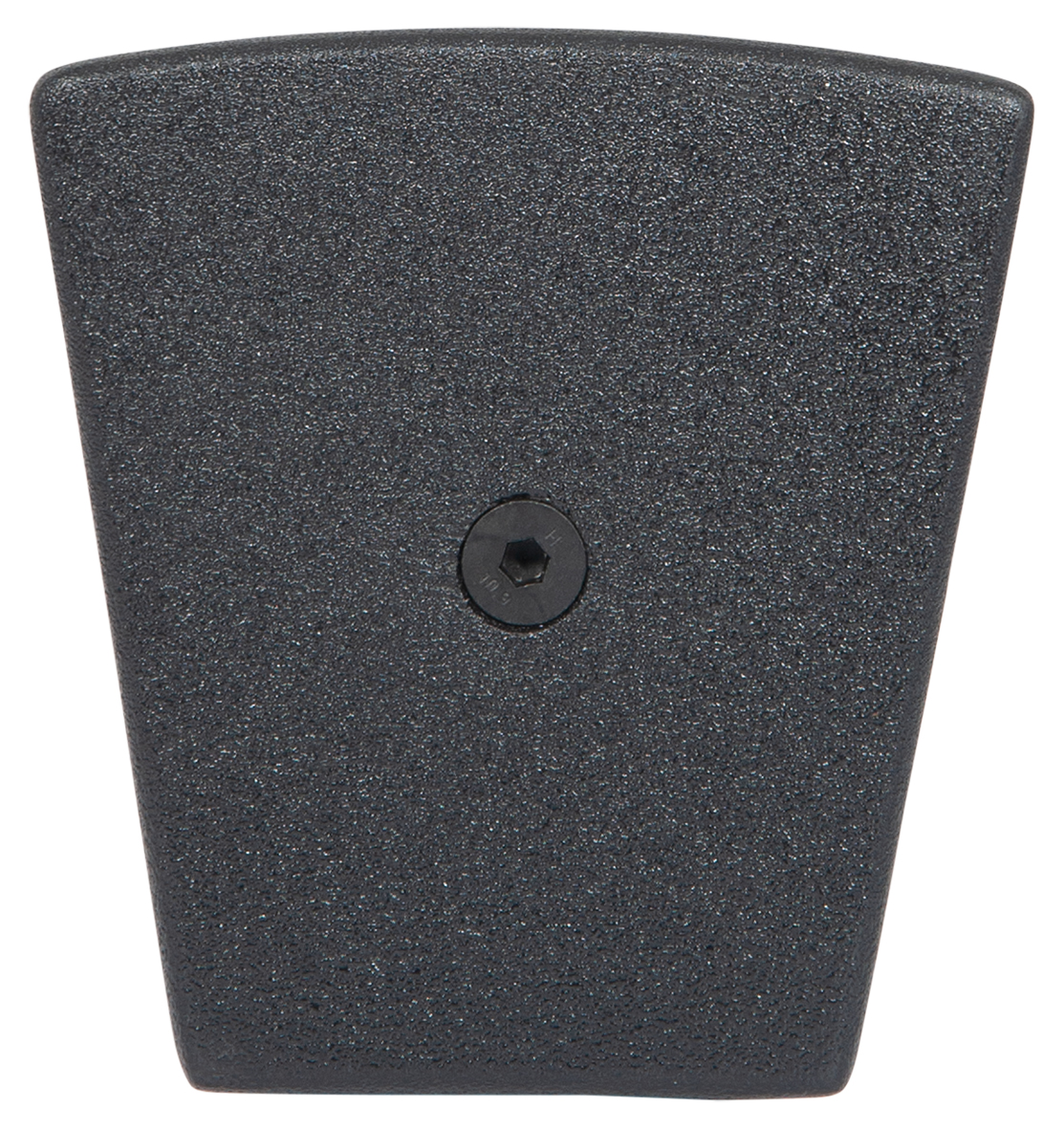

• 7 x M8 suspension points (1 top, 1 bottom, 1 each side, 3 rear)
• Various mounting options
• Textured polyurea paint
• Available in Black and White
