Description
The Crest Audio® CPL™ 6+ is a compact passive two-way loudspeaker designed for music playback, public address and live performance reinforcement applications where space is at a premium.
The CPL 6+ can be utilized for both permanent installations and portable live sound applications. Perfect for public address, monitoring and background audio reinforcement purposes typically required in houses of worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high quality discrete audio distribution is required.
The CPL 6+ is equipped with a premium 6.5 inch woofer having a 1.2 inch voice coil together with a 1 inch exit compression driver known for its smooth frequency response and non-fatiguing mid range. Directivity pattern of the loudspeaker is measured at 90° horizontal and 60° vertical providing a wide yet well controlled audio coverage. An internal advanced crossover network maintains EQ and driver protection. Impedance of the loudspeaker is 16 Ohms allowing for easy daisy chaining. Connectivity is made via either looping 4-pin twist-lock or 4-pin Euroblock connectors.
The CPL 6+ enclosure is built from prime-grade 12 mm plywood that offers sturdy mechanical and low resonant electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure maximum protection of the internal components. The loudspeaker is equipped with a total of 13 threaded suspension points offering multiple mounting options for
various applications. Available in durable black and white finish.
Features CPL 6+
• Ultra-compact passive two-way loudspeaker
• Premium 6.5” woofer, 1.2“ voice coil
• 1” Compression driver, 1“ voice coil
• Continuous power handling: 75 Watts
• Nominal impedance: 16 Ohms
• Coverage pattern (HxV): 90° x 60°

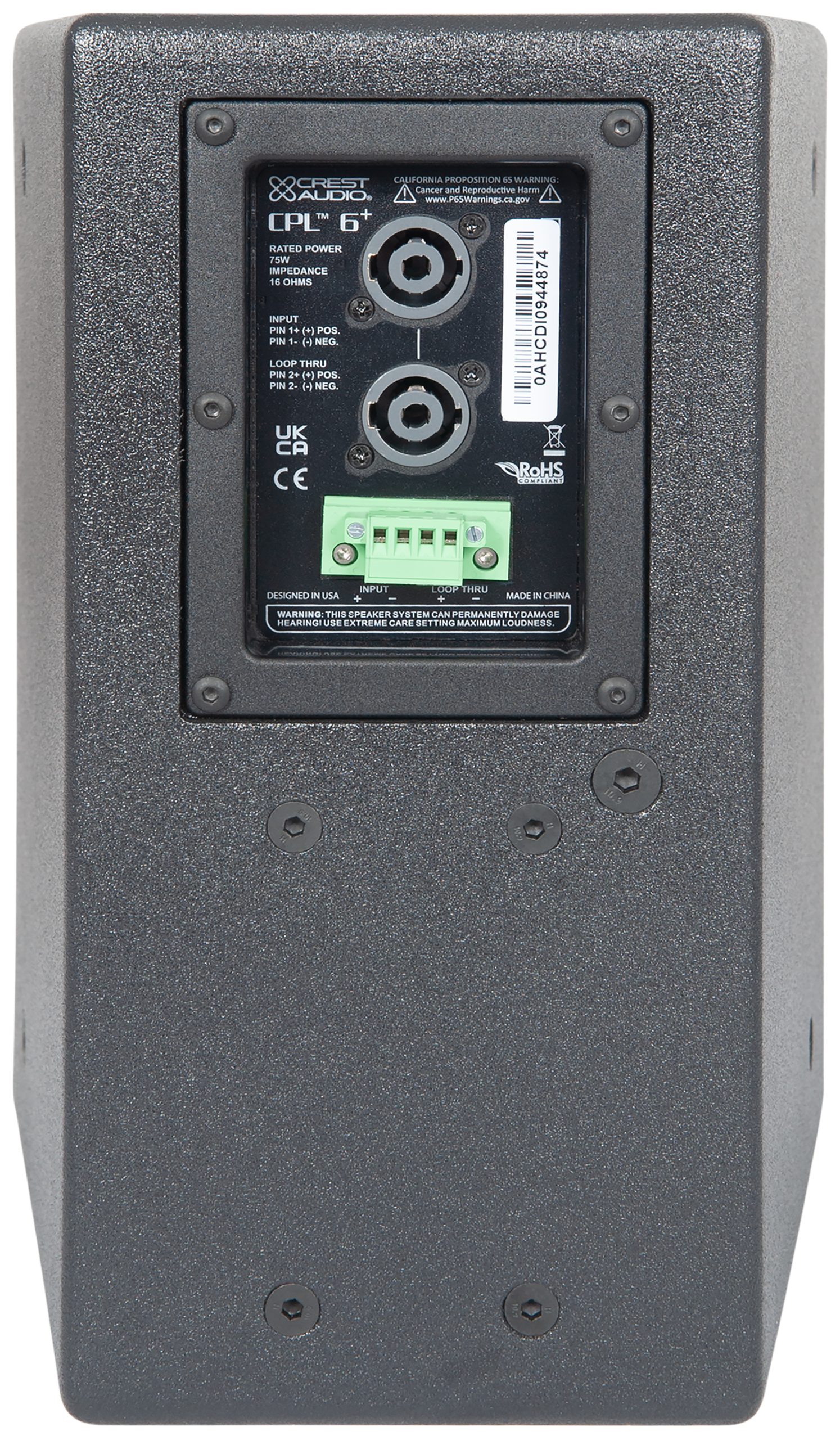

• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
• 2+/2- Loop Through
• Advanced crossover network
• Tweeter protection
• 12 mm Plywood construction
• Textured polyurea paint

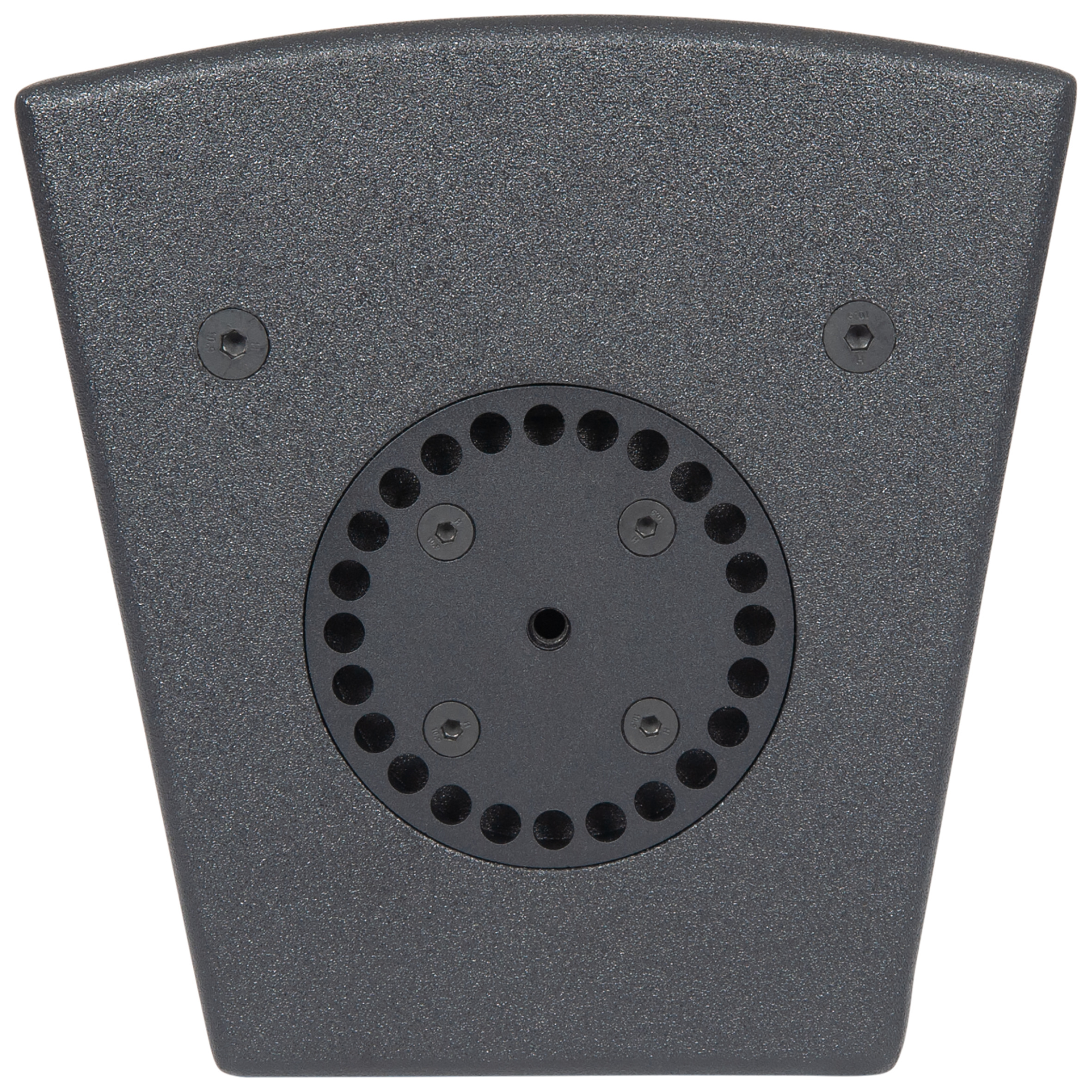

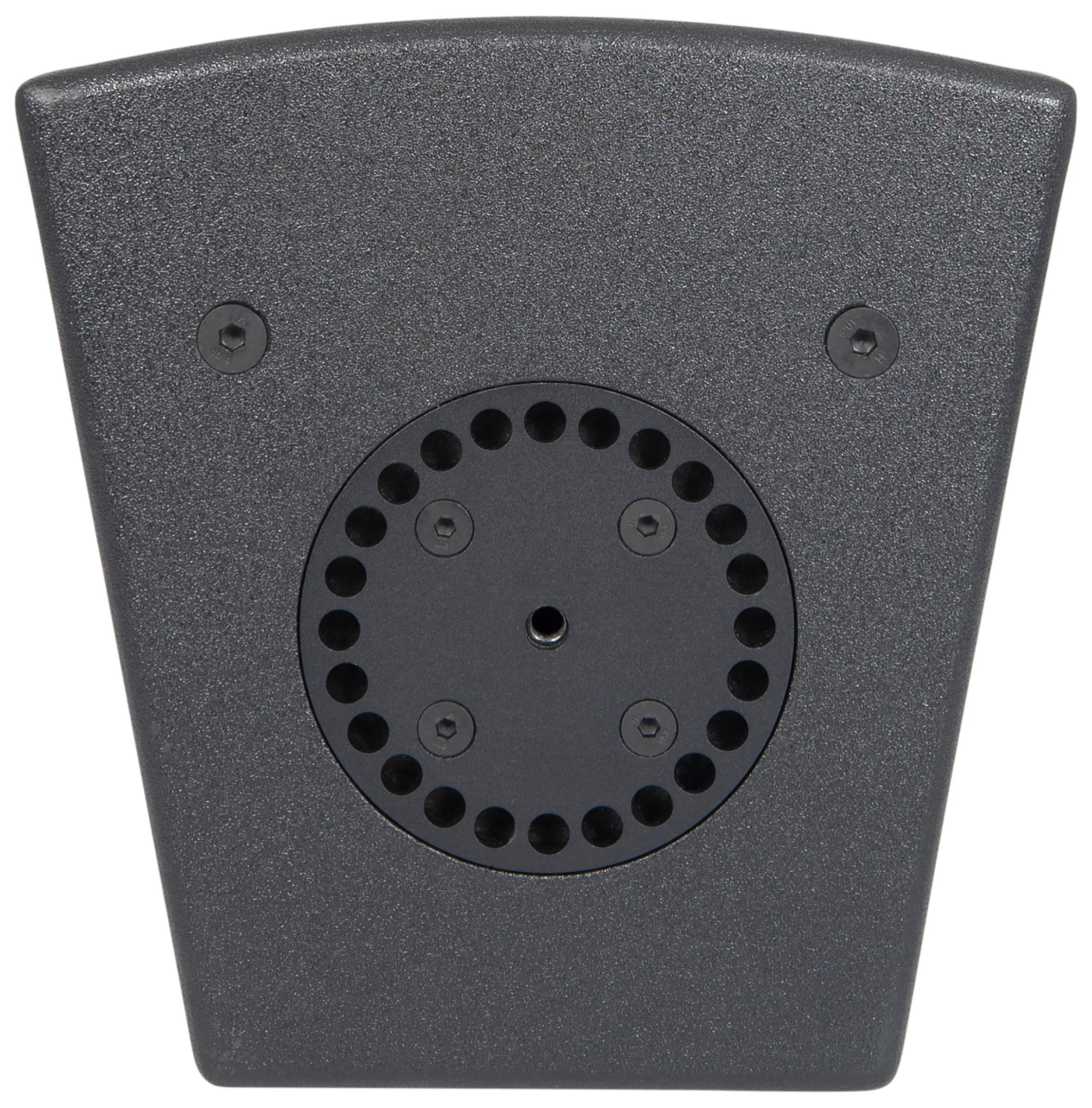

• 9 x M8 suspension points (2 top, 2 bottom, 2 each side, 1 rear)
• 4 x M6 suspension points for Peavey® Versamount™ 35
• Available in Black and White
