CPL™ 5C+

2-way Coaxial Passive Speaker

Description

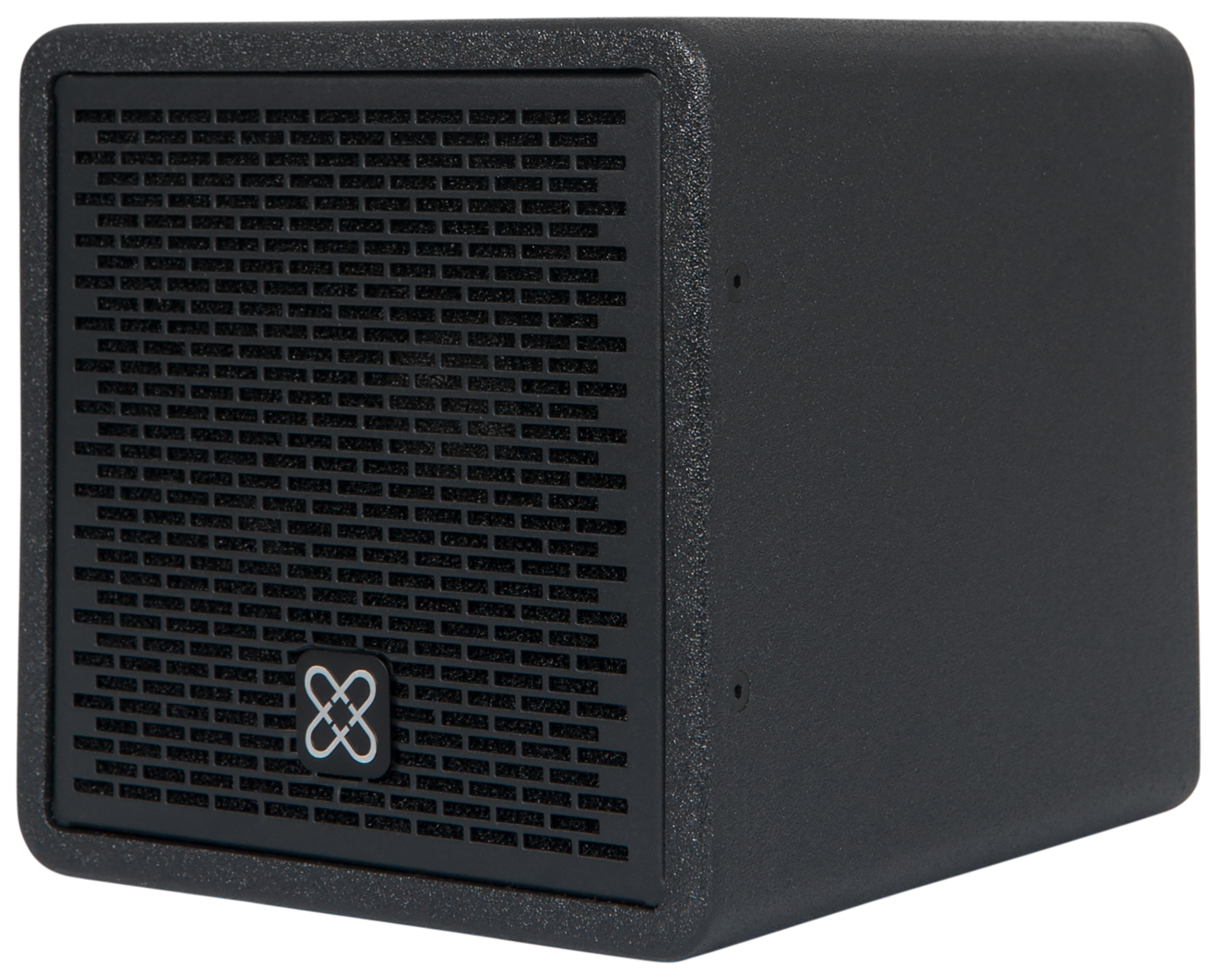

The Crest Audio® CPL™ 5C+ is an ultra-compact passive two-way coaxial loudspeaker designed for music playback, public address and live performance reinforcement applications where space is at a premium.

The CPL 5C+ can be utilized for both permanent installations and portable live sound applications. Perfect for public address, monitoring and background audio reinforcement purposes typically required in houses of worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high quality discrete audio distribution is required.

The CPL 5C+ is equipped with a premium 5 inch woofer having a 1.5 inch voice coil together with a coaxially mounted 1 inch exit Neodymium compression driver known for its smooth frequency response and non-fatiguing mid range. Conical directivity pattern of the loudspeaker is measured at 80° providing a wide yet well controlled audio coverage. An internal advanced crossover network maintains EQ and driver protection. Impedance of the loudspeaker is 16 Ohms allowing for easy daisy chaining. Connectivity is made via either
looping 4-pin twist-lock or 4-pin Euroblock connectors.

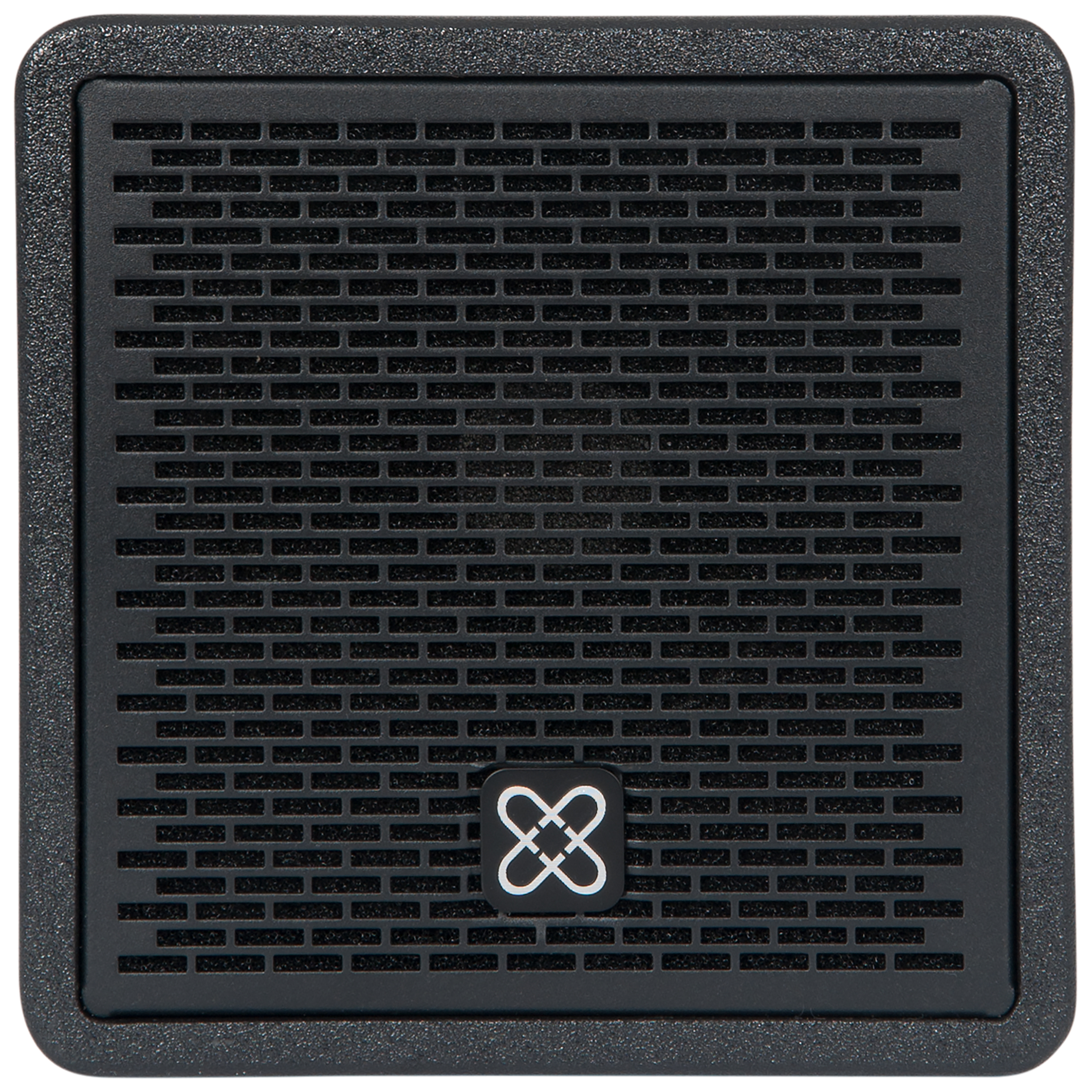

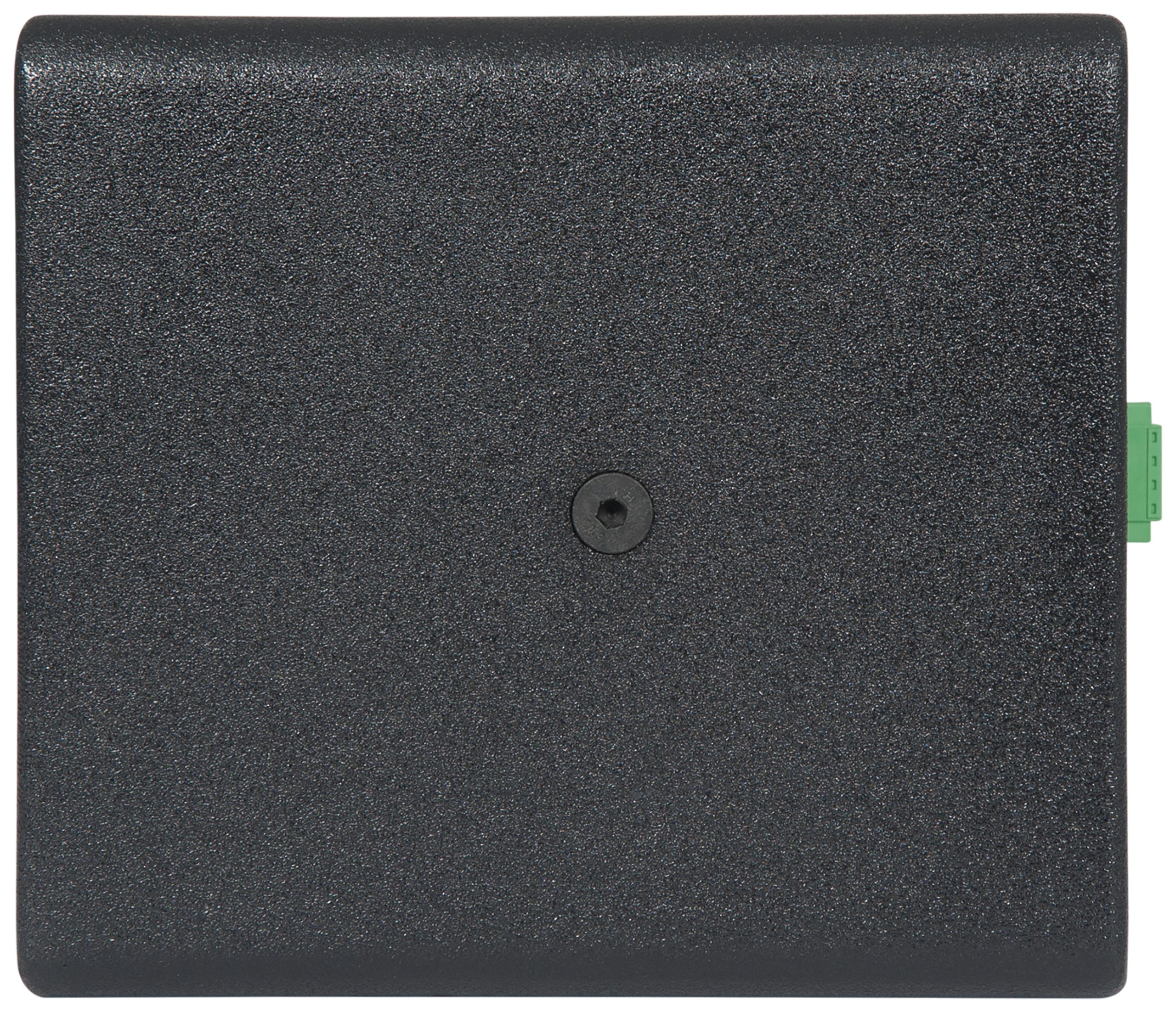

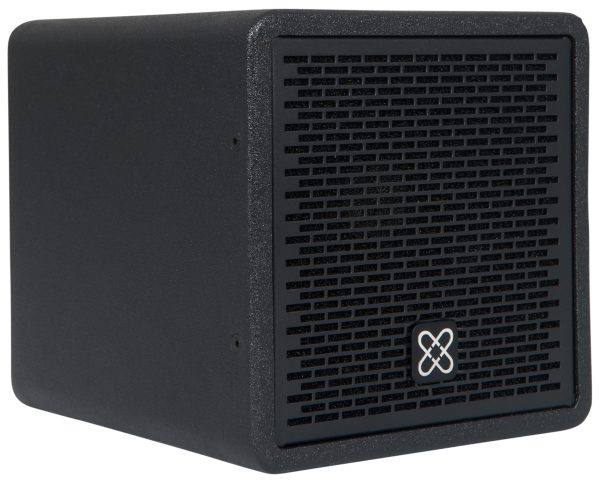

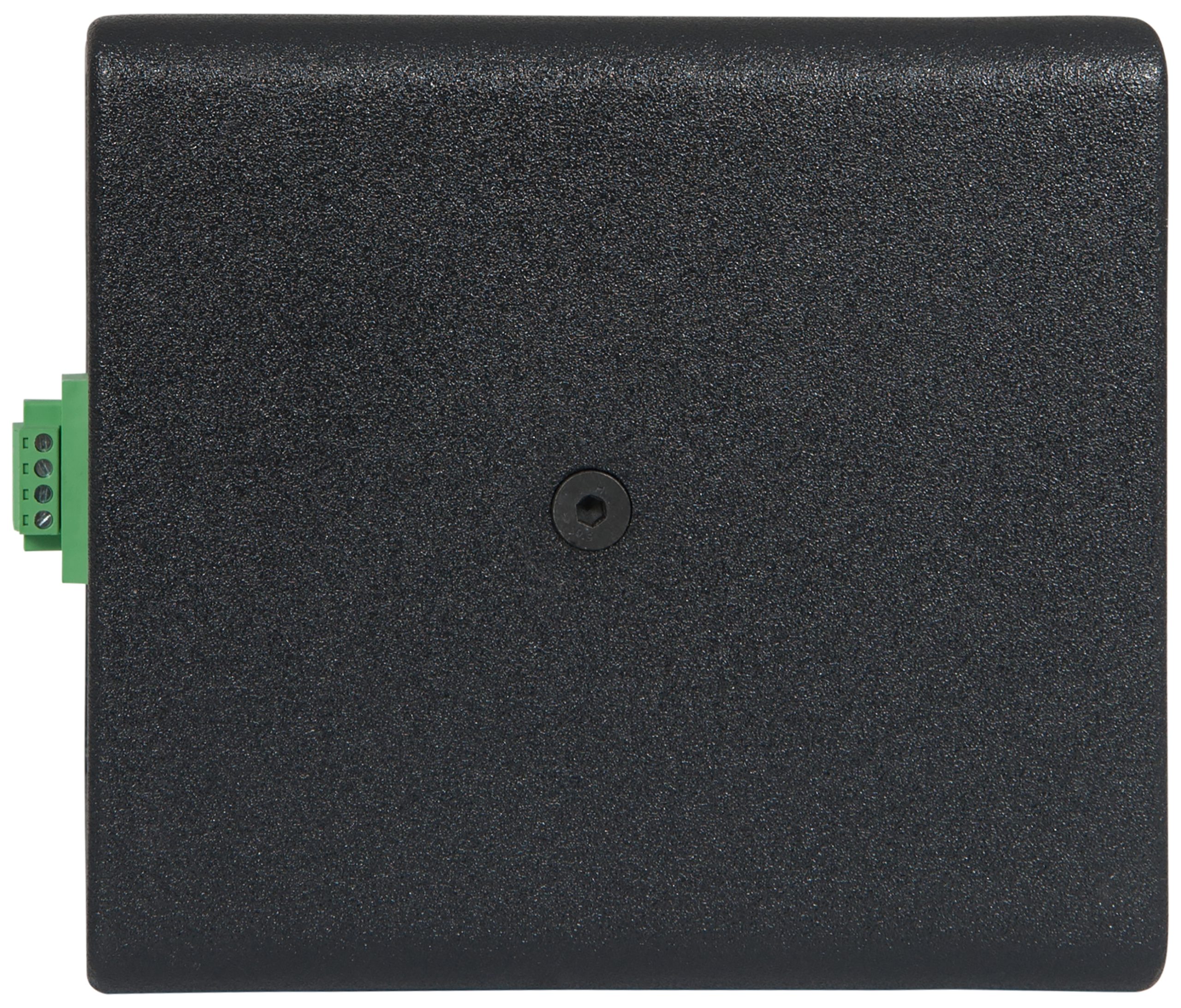

The CPL 5C+ enclosure is built from prime-grade 15 mm plywood that offers sturdy mechanical and low resonant electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure maximum protection of the internal components. The loudspeaker is equipped with a total of 3 threaded suspension points offering multiple mounting options for
various applications. Available in durable black and white finish.

Features CPL 5C+

• Ultra-compact passive two-way coaxial loudspeaker

• Premium 5” woofer, 1.5“ voice coil

• 1” Neodymium compression driver, 1.4“ voice coil

• Continuous power handling: 100 Watts

• Nominal impedance: 16 Ohms

• Coverage pattern (HxV): 80° x 80°

• Provides a consistent sound character all through it’s rated coverage angle due to the coaxial configuration

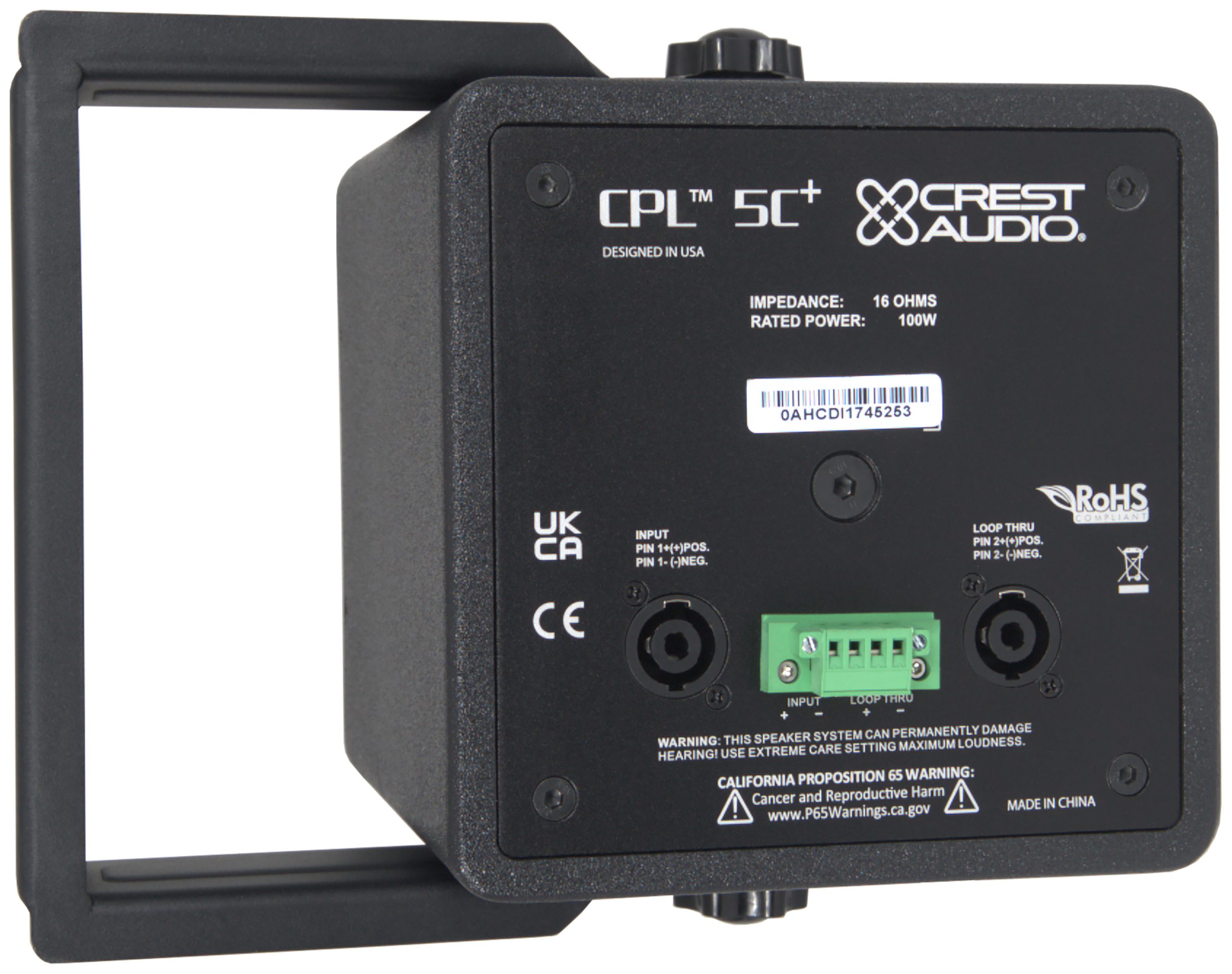

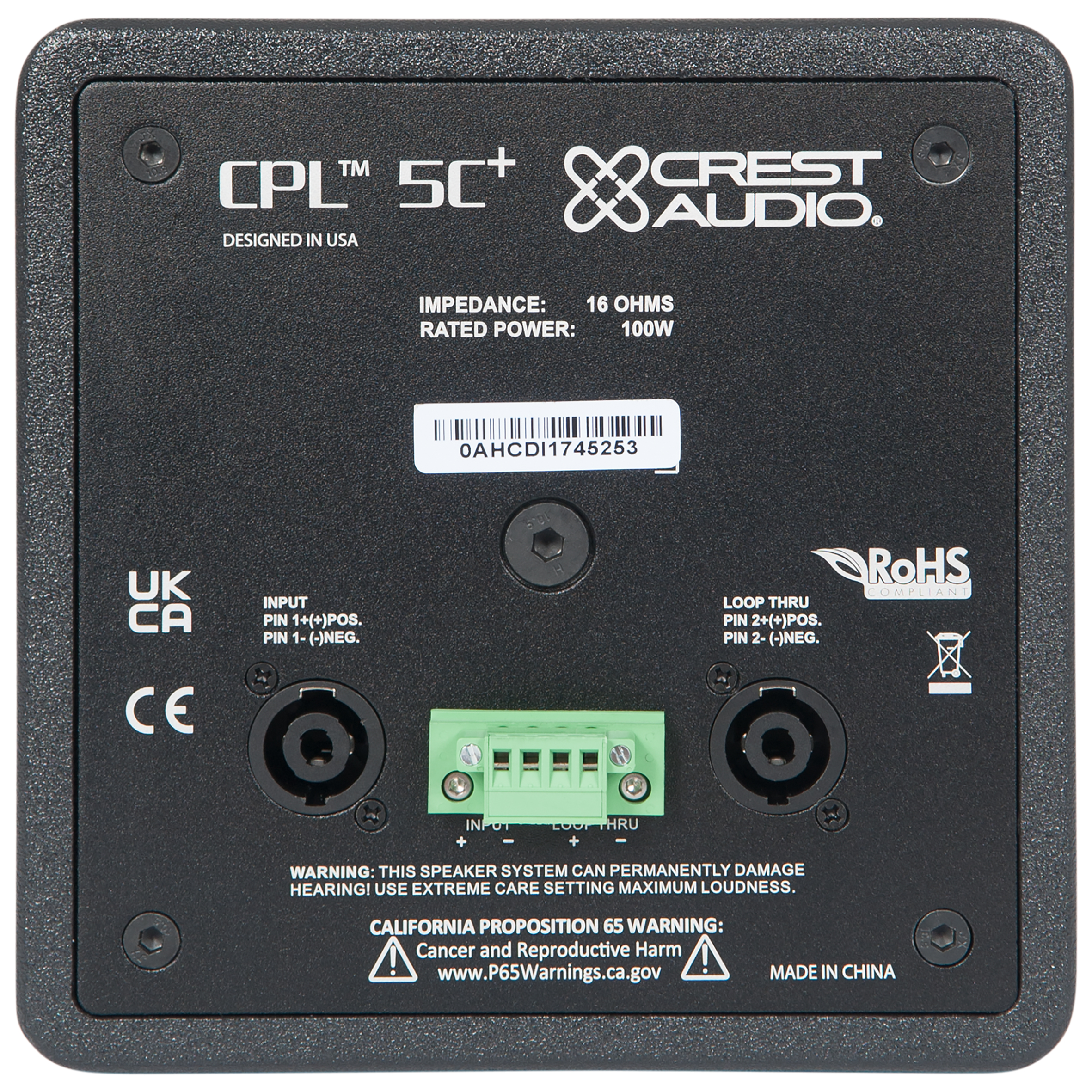

• Connectors: 2 x 4-pin Twist-Lock & 4-pin Euroblock

• 2+/2- Loop Through

• Advanced crossover network

• Tweeter protection

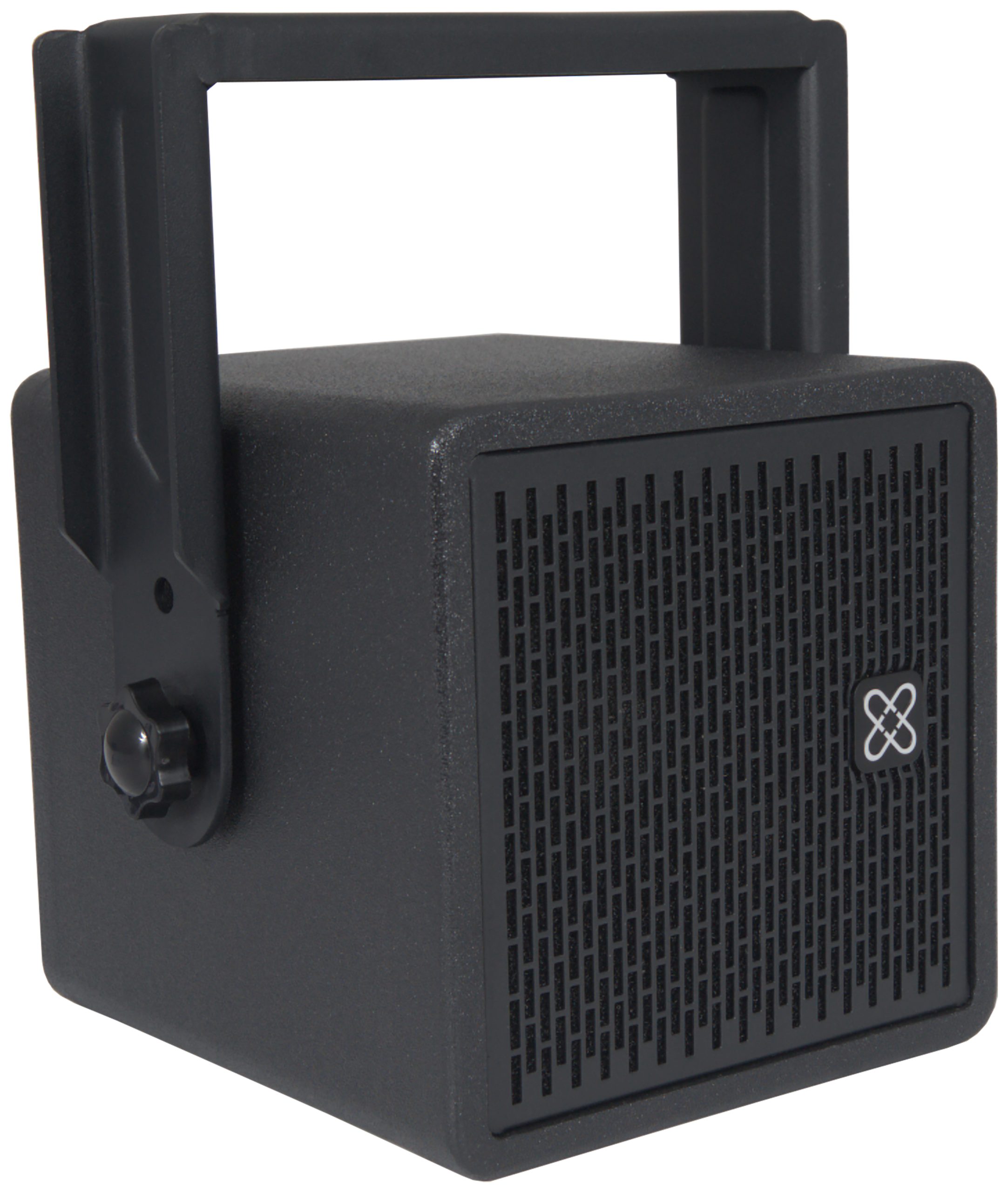

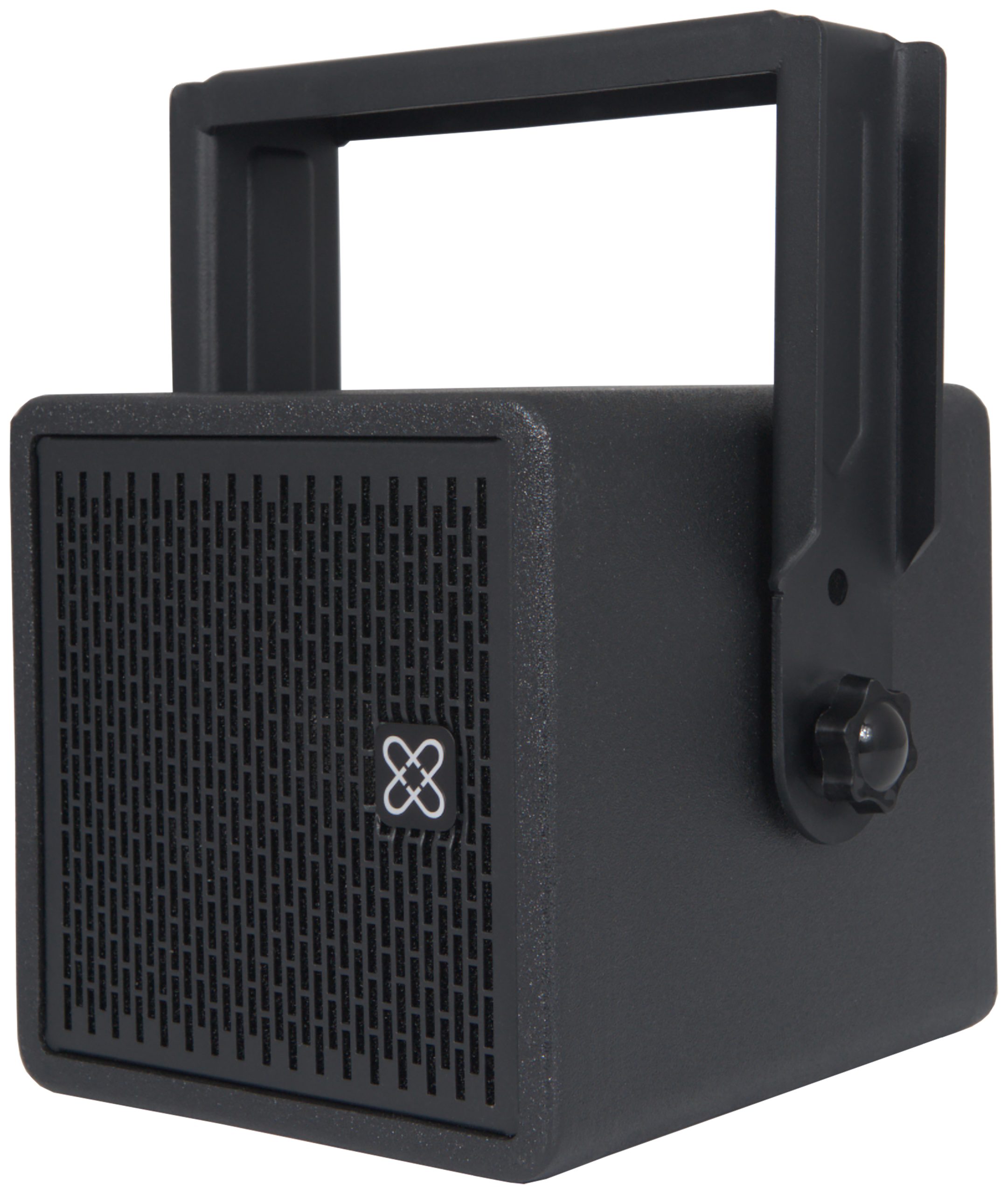

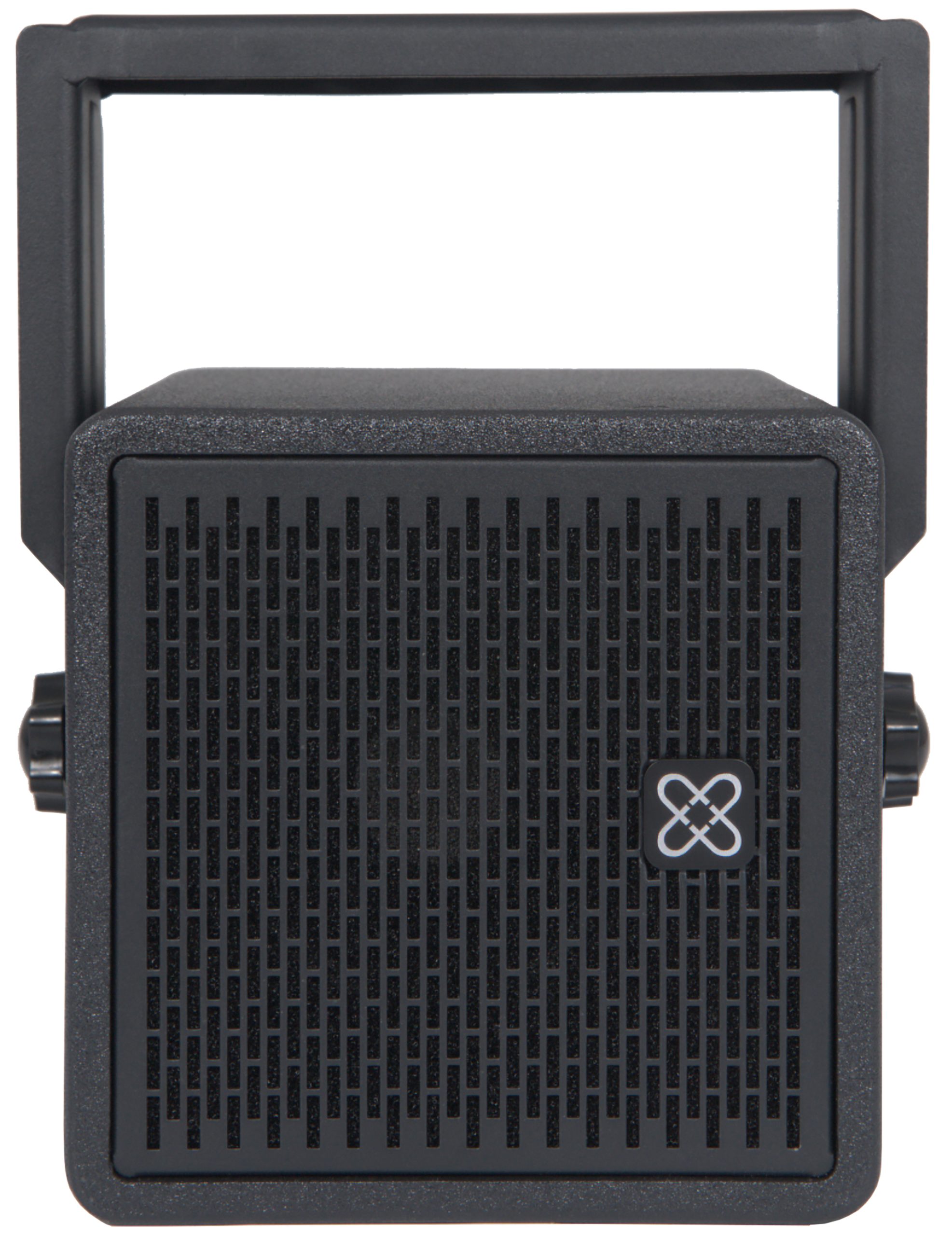

• U-Bracket included

• 15 mm Plywood construction

• Textured polyurea paint

• Available in Black and White

Additional information

Speaker Configuration

Coaxial 2-way

Speaker Type

Non-Powered

Crossover Modes

Power RMS

100 W

Power Program

Power Peak

Nominal Impedance

16 Ω

Sensitivity (1W/1m)

92 dB

Maximum SPL

118 dB

Speaker Frequency Response

91 Hz – 20 kHz (-10 dB)

Coverage (H x V)

80° x 80°

HF Driver

Crest Audio 5C36NP1 – 1" Neodymium with 1.4" Voice Coil

LF Driver

5" Woofer

Input Connectors

2 x 4-pin twist-lock (NL-4 style) & 1 x 4-pin Euroblock

Suspension Points

3 x M8

Pole Mount

Optional

Enclosure Material

Plywood

Color

Net Weight

11.6 lbs (5.3 kg)

Product Height

7.28" (185 mm)

Product Width

7.28" (185 mm)

Product Depth

8" (203 mm)
