CobraNet® CM-1 Module

CobraNet Interface Card

Description

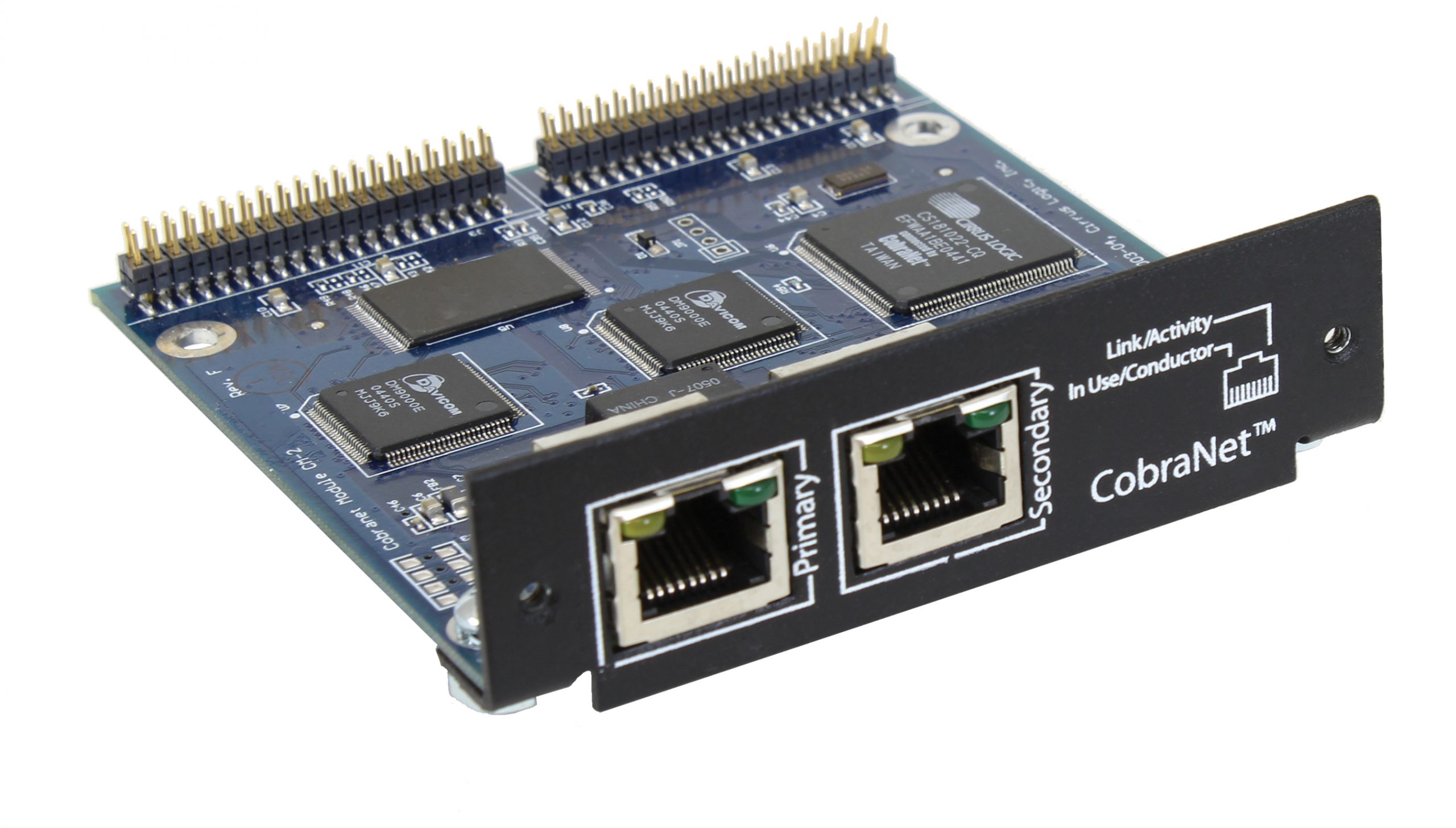

The CM-1 Module is the Cirrus Logic CobraNet® module supporting 32i x 32o CobraNet streaming audio channels and offers primary and secondary network connections via RJ45 jacks. It can be added to the NION® nE, or included as an option in the NION n3, NION n6 or NION nX.

Also available as an option in the CAB™ 4n required for the support of 9-bit RS-485 Legacy ControlMatrix™ systems.

Additional information

Channels (Input)

32

Channels (Output)

32

Networked Audio

Yes (CobraNet)

Network Control

Yes (via audio network port)

Frequency Response

20 Hz – 20 kHz; ±3 dB

Input Connectors

RJ45

Output Connectors

RJ45

SKU

03513990
