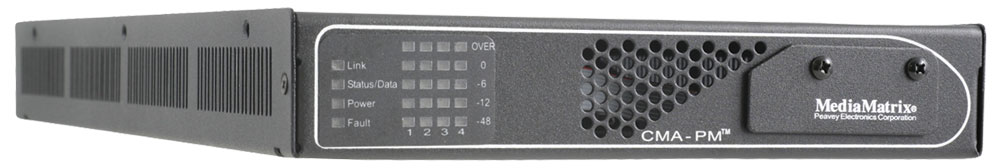

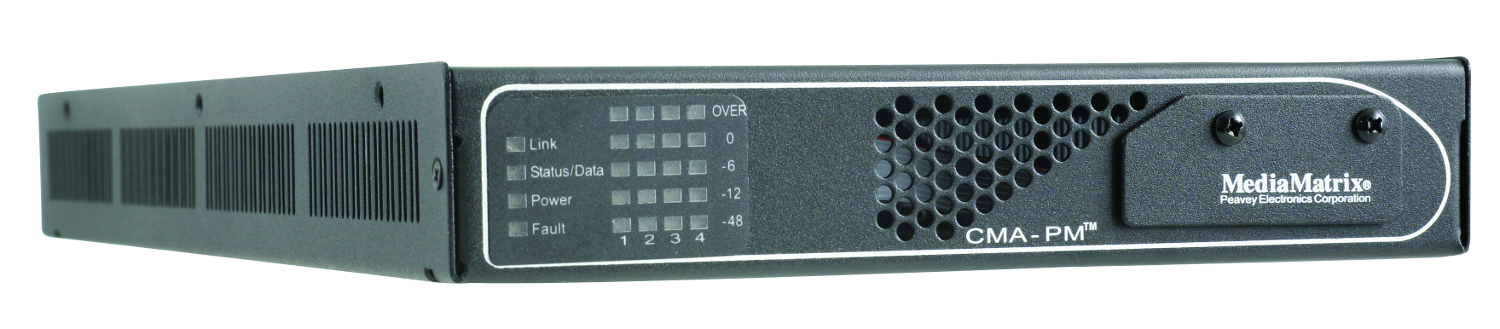

CMA-PM™ Aggregator

Paging Station Interface Breakout

Description

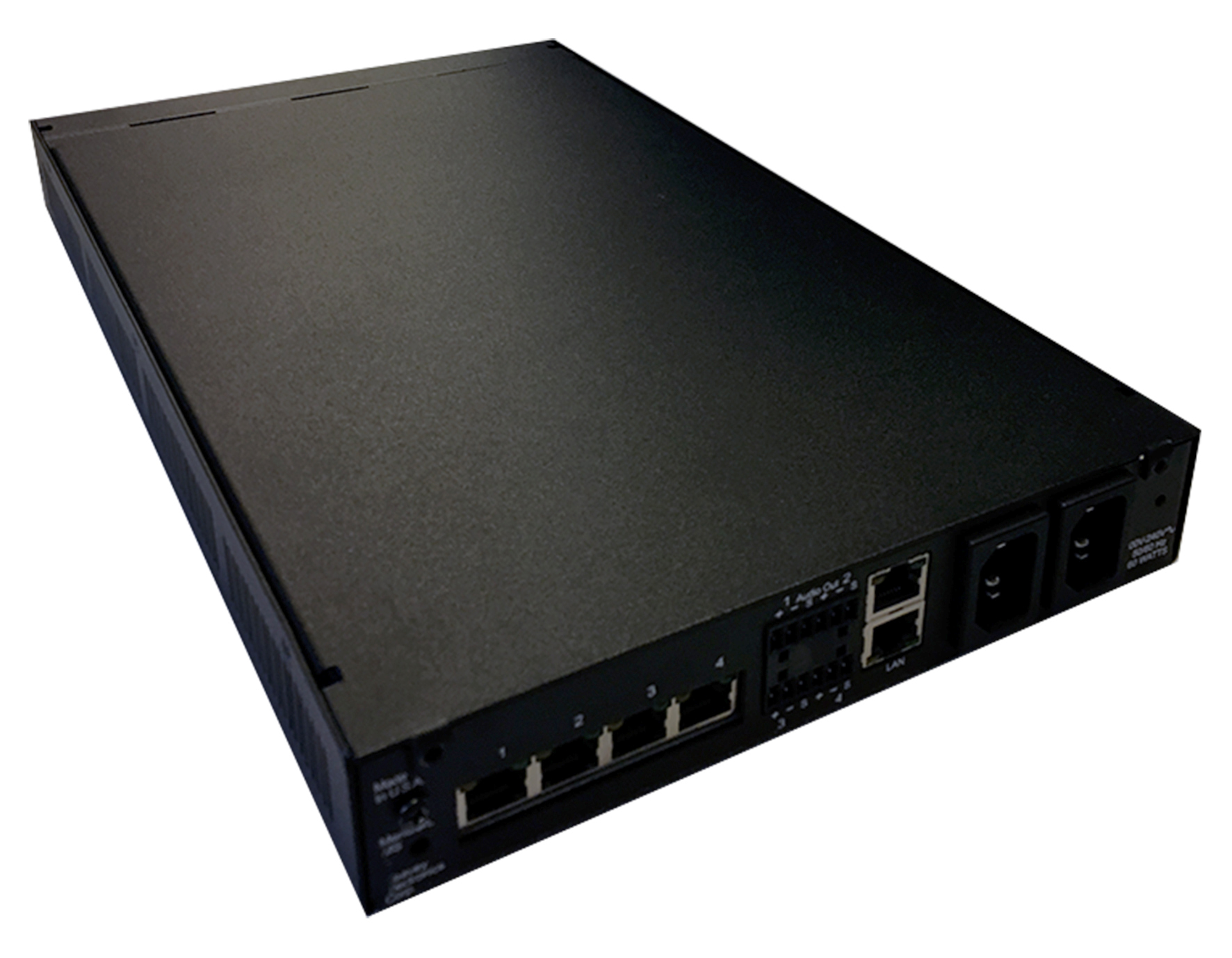

The primary purpose of the CMA-PM™ Aggregator is to provide connectivity for up to four PageMatrix™ paging stations, data from all stations is then aggregated, repackaged and made available at the Ethernet port(s). Connectivity to the paging stations is done via the PageMatrix standard RJ45 connection providing power, TX/RX data and balanced audio. Connectivity to the ControlMatrix® II Host product is via Ethernet and 4x balanced analog audio outputs can be routed to an adjacent CAB™  8n or another MediaMatrix® Input source such as a NIO™  card residing inside a NION® processor.

Additional information

Frequency Response

20 Hz – 20 kHz; ±3 dB

Networked Audio

Yes (CobraNet)

Network Control

Yes (via audio network port)

Input Connectors

RJ45

Rack Mount (19")

Optional

SKU

03602320
