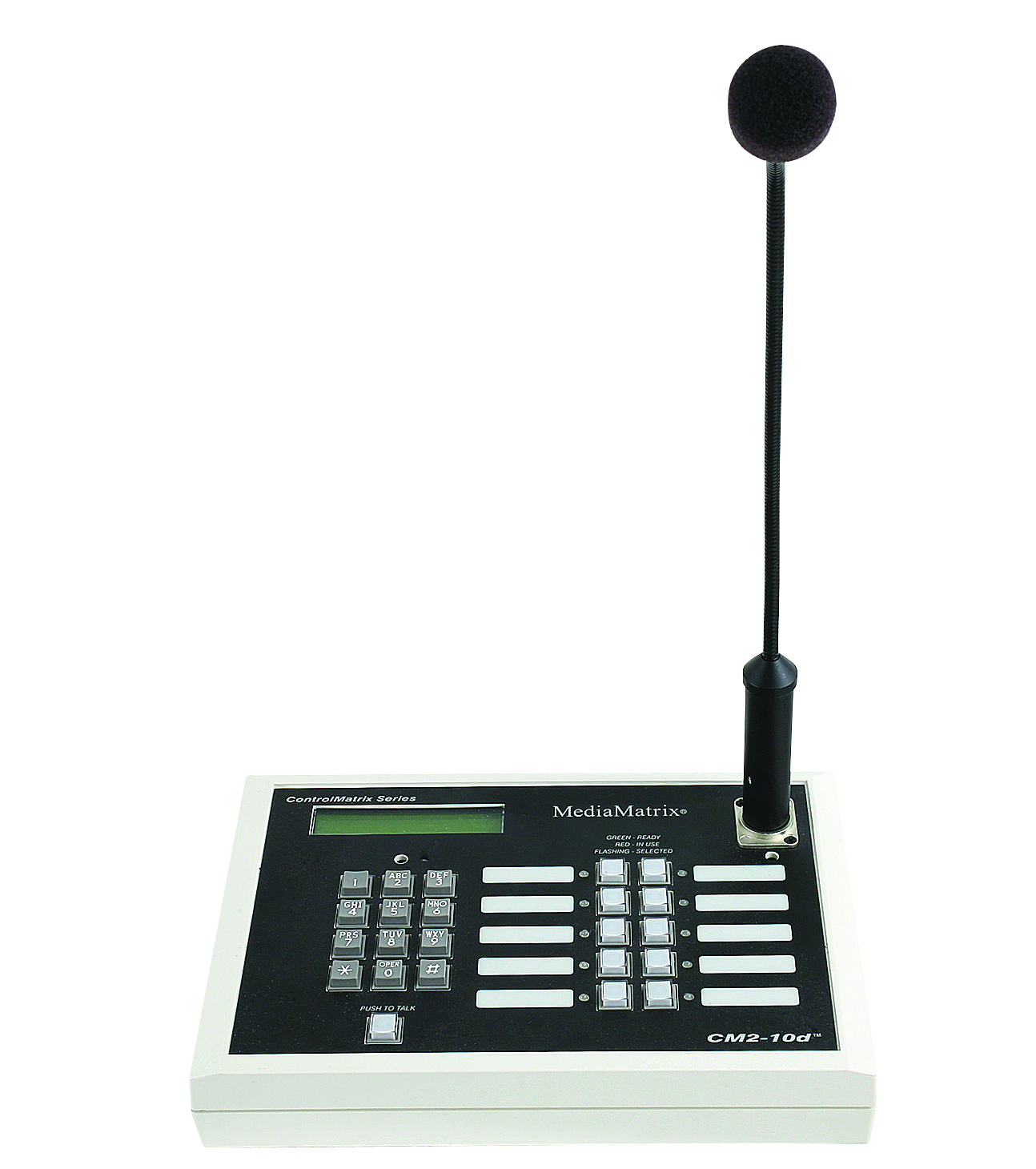

CM2-10D™ Desktop Paging Station

Desktop Paging Station for ControlMatrix II

Description

The MediaMatrix® CM2-10d™ desktop paging station features a high-quality microphone preamplifier, and a built-in analog-to-digital converter. All connections to the CM2- 10d are accomplished through a single Ethernet network cable with audio being delivered over CobraNet™.

Power is via PoE (Power over Ethernet) technology. The high-impact ABS cabinet design allows the CM2-10d to be used on desktops, surface mounted on vertical surfaces or flush mounted using an optional steel backing box with a handheld dynamic microphone with a PTT (Push-To-Talk) switch.

Features CM2-10D Desktop Paging Station

• Easily configurable for administrative or user paging with ControlMatrix® II software

• Operates on PoE (Power over Ethernet) or low voltage DC power

• Uses standard Ethernet network connectivity

• High impact ABS plastic enclosure with nonslip rubber feet for desktops

• Back-lit 2 line by 20 character front panel LCD display

• Gooseneck condenser microphone

• Integrated microphone pre-amplifier and analog to digital convertor

• Additional RJ-45 jack for connecting a remote microphone panel

Additional information

Channels (Input)

1 x Mic

Networked Audio

Yes (CobraNet)

Network Control

Yes (via audio network port)

Power over Ethernet (PoE)

Frequency Response

20 Hz – 20 kHz; ±3 dB

Input Connectors

3-pin XLR(f) & RJ45 connection for extending to an RMP-2 remote microphone panel

Output Connectors

RJ45

SKU

03608485
