CM™ 2204

Industrial Multi Channel Power Amplifier

Description

CM™ Series power amplifiers feature a unique amplification architecture providing a host of user benefits including simplified operation and use in multiple applications, as well as unsurpassed sonic quality and
flexible power.

CM 2204 comprises four channels (channels are independent). A host of applications benefit from the use of multiple channel amplification, including bars, clubs and restaurants; video conferencing systems; hotels and motels; industrial installations; and retail stores, among others. One amplifier for multiple applications provides a cost-effective solution, expansion opportunities and unparalleled flexibility.

Features CM 2204

• Four channel power amp system – 220 Watts RMS per channel (70V)

• Low-Z (4 or 8 Ω ) or 70V output

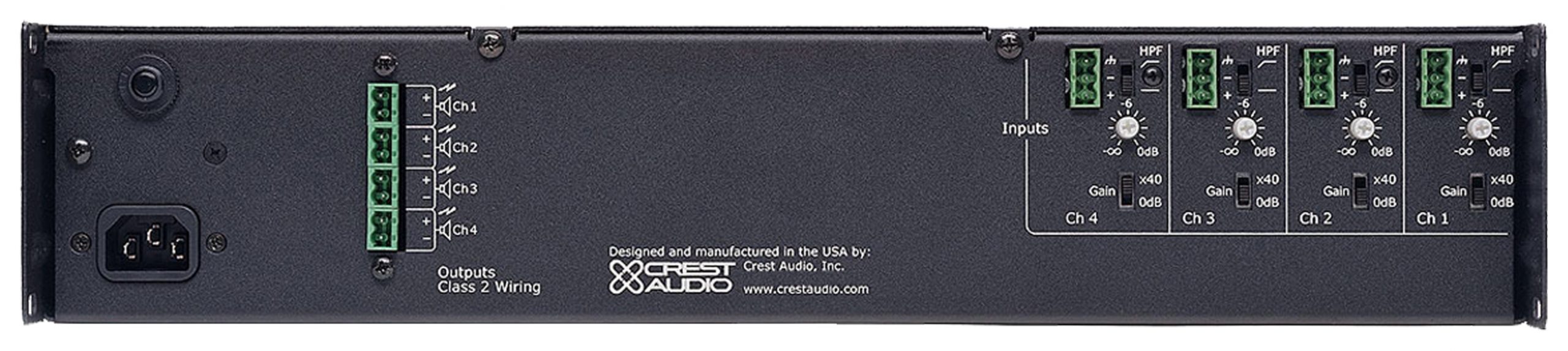

• Input connectors: balanced three-pin Phoenix

• Output connectors: two-pin Phoenix

• Full range of protection circuits including ACL™, IGM™ and Autoramp™

• 16-gauge steel chassis

• 2U rack space height

• Protection Circuits / Safety including: ACL, IGM, and Autoramp

• Front-to-side cooling

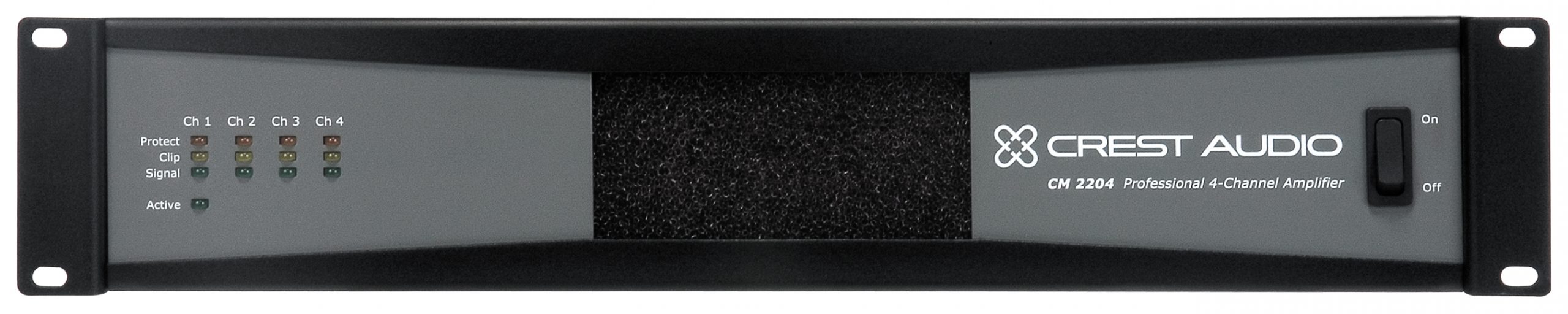

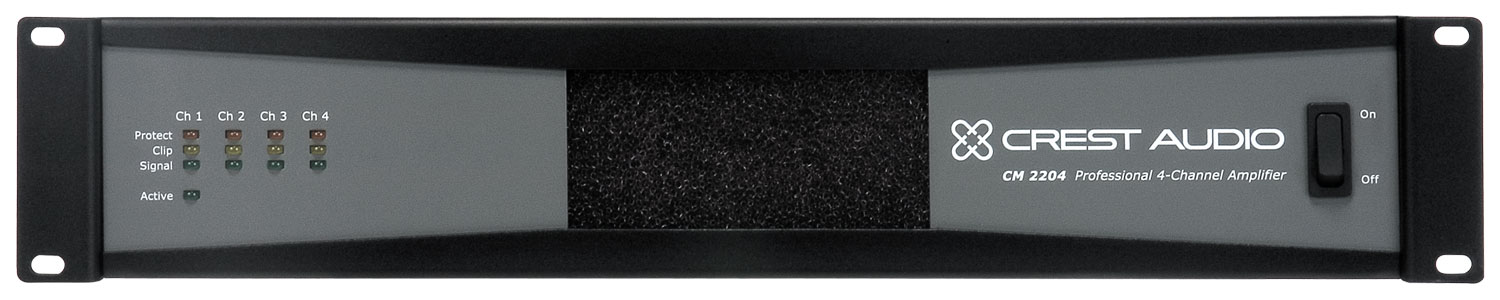

• Front-panel LED indicators per channel: signal, clip, and protect

• Input and output mating connectors are included

Additional information

Channels (Input)

4

Channels (Output)

4

Power per Channel @ 4 Ω

155 W

Power per Channel @ 8 Ω

240 W

Power per Channel @ 70V

180 W

Power per Channel @ 8 Ω Bridged

320 W

Power per Channel @ 140V Bridged

440 W

Topology

Class D

Minimum Load Impedance

4 Ω

Frequency Response

5 Hz – 20 kHz; -1 dB

Input Connectors

4 x 3-pin Euro Connector

Output Connectors

4 x 2-pin Euro Connector

Color

Rack Mount (19")

Yes (2U)

Net Weight

34.0 lbs (15.40 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

17.05" (433 mm)

AC Power Input

120VAC 60 Hz & 230VAC 50 Hz version available

SKU

01000540
