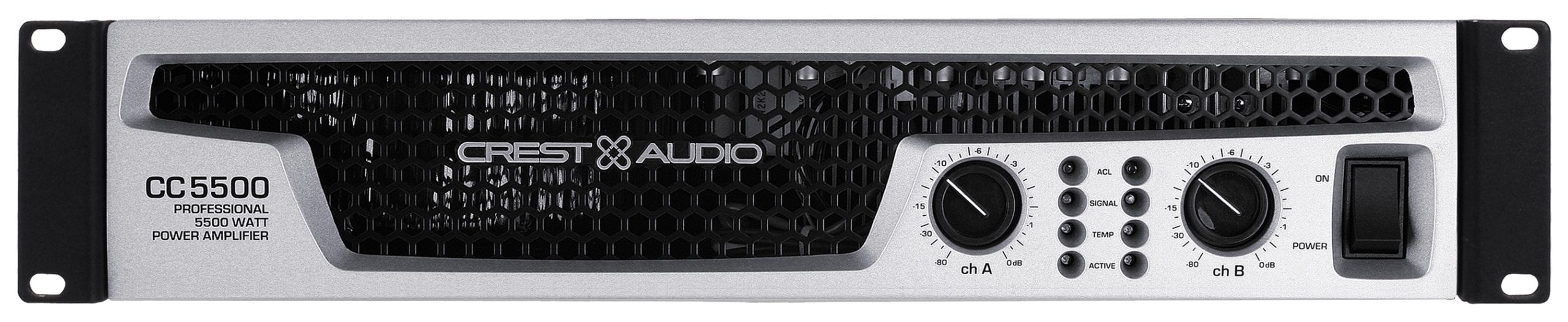

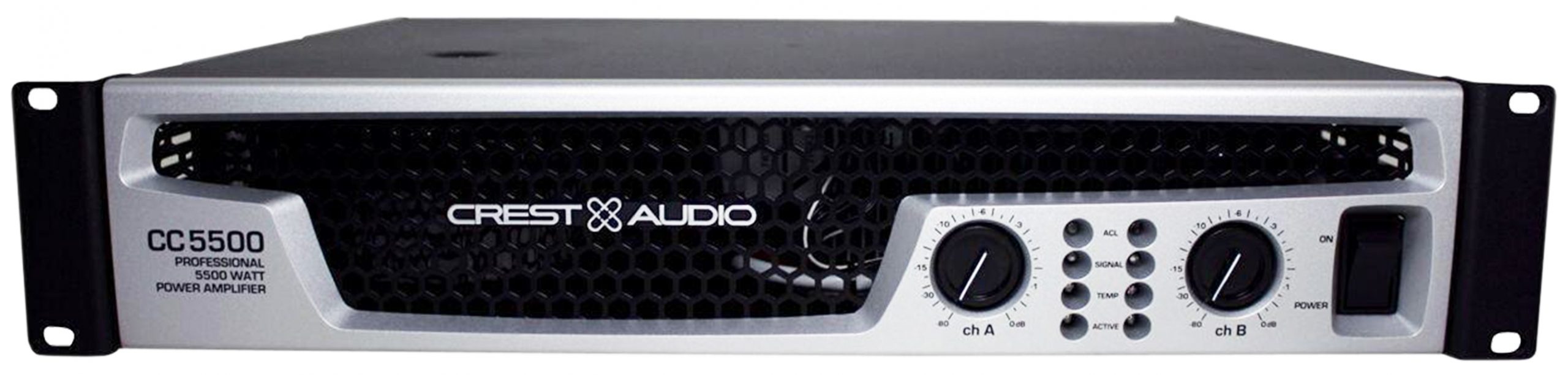

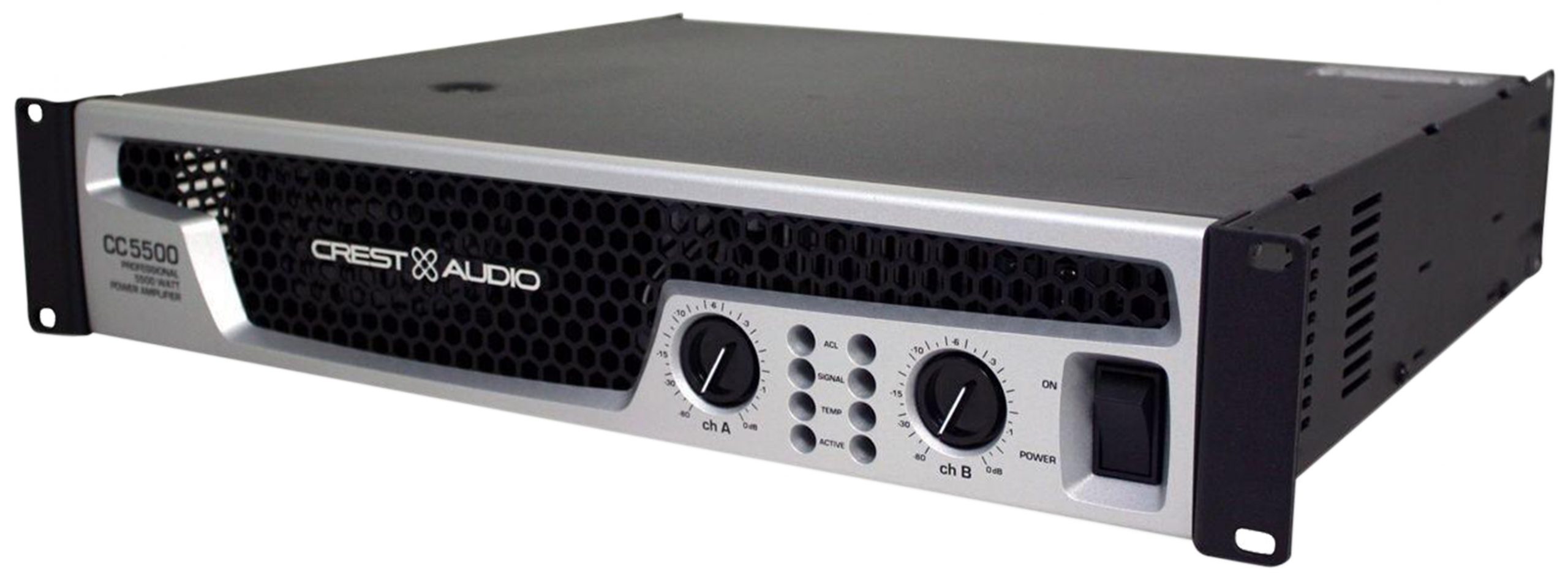

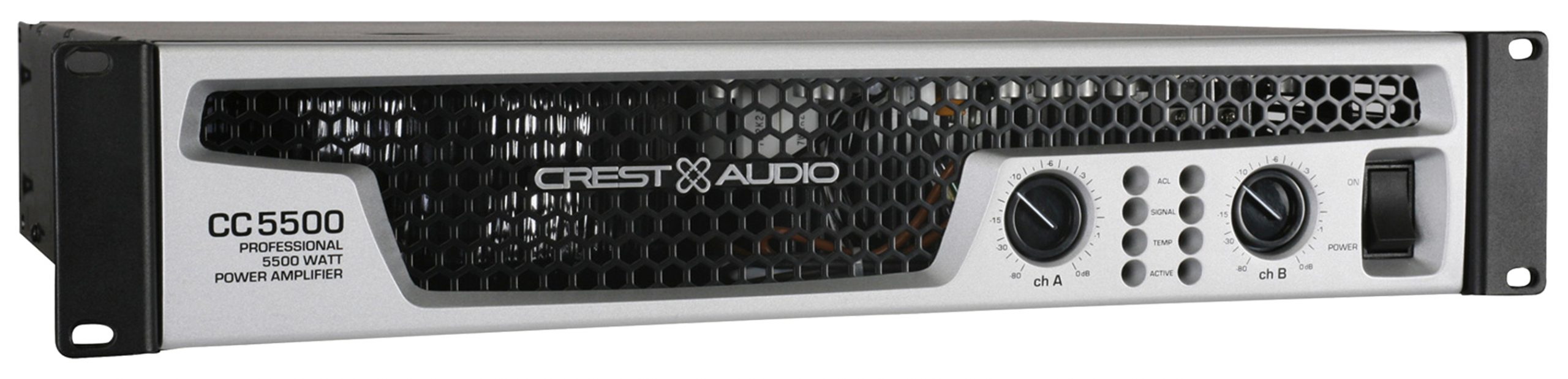

CC™ 5500

High Efficiency Touring Power Amplifer

Description

Crest Audio® CC™ Series amplifiers are designed to achieve unsurpassed sonic performance and long-term reliability under extreme stress in touring or fixed installation applications. Absolute sonic accuracy is the hallmark of every Crest amplifier. Bass is solid and defined to the limits of audibility with ample current reserves. Wide-bandwidth output devices ensure detailed, transparent high frequency response. And, thanks to Crest’s exclusive IGM™ circuit, the CC Series will drive 2 Ω loads safely without compromising performance.

Designed for years of reliable, flawless operation under rigourous use. The CC Series amplifiers offer the sonic superiority and unsurpassed reliability for which Crest Audio is famous, while remaining surprisingly compact. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. Each assembly is pre-tested, and the assembled CC receives a rigourous “hot room” burn-in before thorough final checkout on precision test equipment.

Features CC 5500

• 2750 Watts @ 2 Ω per channel

• 1800 Watts @ 4 Ω per channel

• 1150 Watts @ 8 Ω per channel

• 5500 Watts @ 4 Ω bridged

• Toroidal power transformer

• Dual variable speed fan

• Balanced XLR inputs

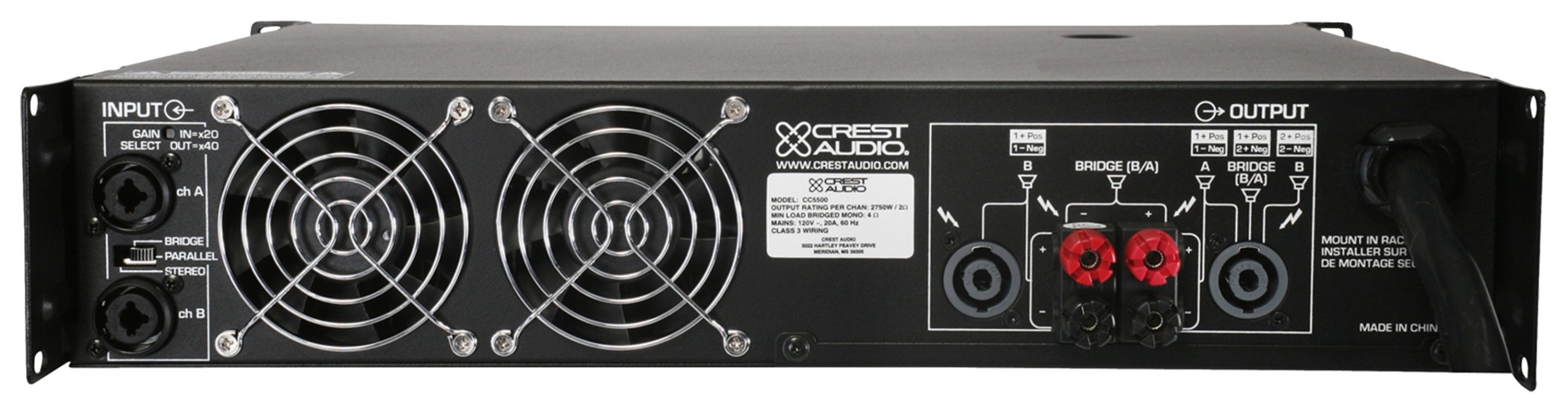

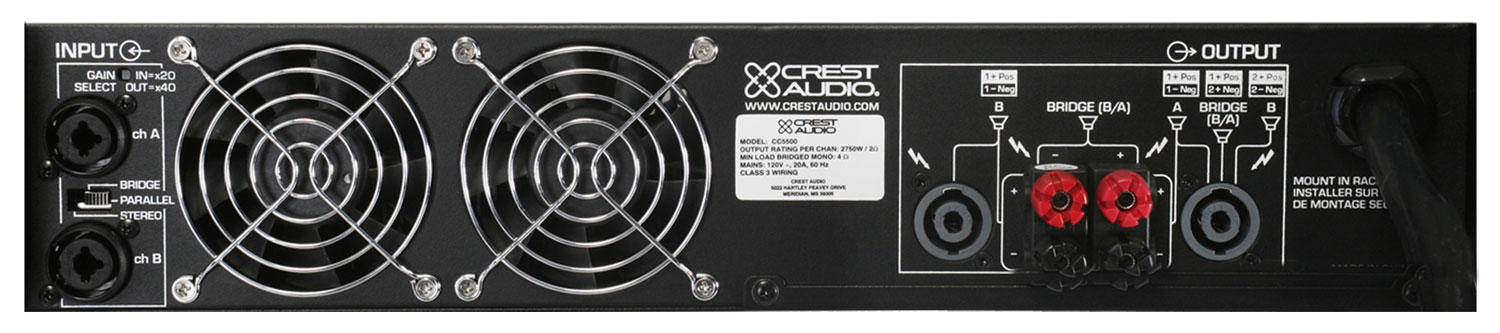

• Neutrik® Speakon® and 5-way binding post speaker outputs

• Mode selector switch for stereo, parallel and bridged-mono operation

• Input sensitivity selection

• Recessed, stepped attenuators

• Front panel circuit-breaker switch

TOURCLASS PROTECTION CIRCUITS

ACL™ (Active Clip Limiting) prevents speaker damage by providing gentle gain reduction when the signal approaches the clipping threshold.

IGM (Instantaneous Gain Modulation) monitors speaker loads to detect conditions that may overstress output devices. This allows safe operation into nominal 2 Ω speaker loads.

AUTORAMP™ gradually increases gain to the attenuator level settings when the amplifier is turned on. This prevents abrupt turn-on level.

Other protection features include: short circuit, DC voltage, comprehensive thermal management and current in-rush turn-on/ off; transient sub-sonic input.

Additional information

Channels (Input)

2

Channels (Output)

2

Power per Channel @ 2 Ω

3600 W

Power per Channel @ 4 Ω

1800 W

Power per Channel @ 8 Ω

1150 W

Power per Channel @ 4 Ω Bridged

5500 W

Power per Channel @ 8 Ω Bridged

3600 W

Topology

Class H

Minimum Load Impedance

2 Ω

Frequency Response

-3 dB, 10 Hz – 40 kHz; +0

Input Connectors

2 x XLR-1/4" Combo

Output Connectors

2 x Neutrik® Speakon® NL4 & 2 x Binding Post

Color

Rack Mount (19")

Yes (2U)

Net Weight

47.0 lbs (21.32 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

16.13" (410 mm)

AC Power Input

120VAC 60 Hz, 230VAC 50 Hz, 240VAC 50 Hz version available

SKU

03513840
