CAB™ 4n - CM2

CobraNet Breakout Box

Description

The CAB™ 4n – CM2 continues in the tradition of high-end audio networking set forth by the time-tested CAB Series. The CAB 4n break-out box was designed specifically for NION based systems using the CobraNet® network audio streaming protocol.

The CAB 4n features MediaMatrix® scalable I/O architecture, with support for the popular line of MediaMatrix MM™ 4 series I/O modules (up to four modules configurable for 16×0, 0x16, 12×4, 4×12 or 8×8 operation, IxO). All inputs can be configured in groups of four channels for microphone or line level in any of the available configurations.

The CAB 4n features a versatile, performance-oriented GPIO port, which provides configurable contacts for analog, digital and dry contact use. All of the GPIO ports are configurable from the NWare™ software and include an easy DIN rail mounting system for efficient rack wiring and service.

Features CAB 4n – CM2

• Scalable I/O architecture

• Supports all MediaMatrix four channel I/O modules

• Supports upt to four modules in any combination of mic in, line in, and output

• Supports both CobraNet and Dante audio network modules

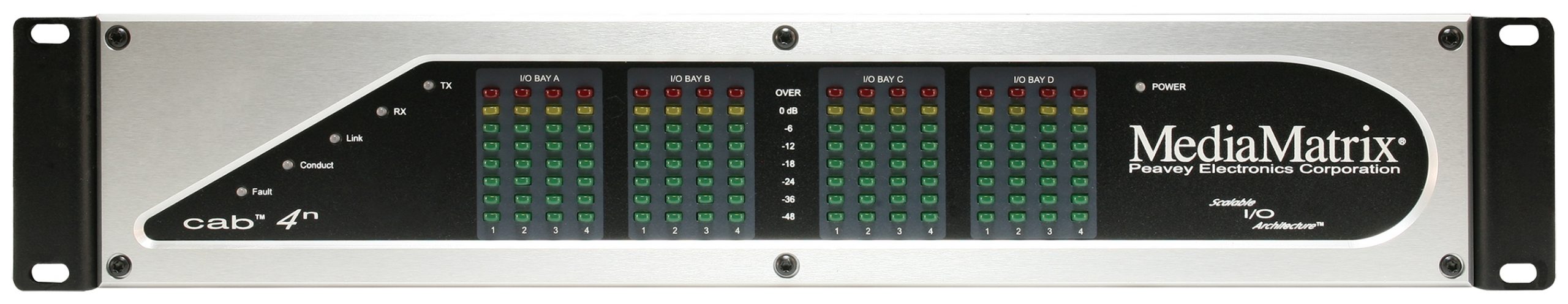

• Front panel level meter for each channel•

• Front panel network status and fault indicators

• 48 kHz sample-rate

• 24-bit quantization, 64x oversampling

• Buddy Link redundancy system (CobraNet models only)

• GPIO port with eight configurable GPIO pins

• four “Form C” relays with NO and NC connections, contacts rated for 1A

• GPIO-25 DIN rail breakout panel for external control terminations (optional)

• Integrated CobraNet serial bridging for EIA-485 (CobraNet models only)

• Universal power supply (100-240V 47-63 Hz)

Additional information

Channels (Input)

16 I/O configurable in blocks of 4 channels via MM4 series cards

Channels (Output)

16 I/O configurable in blocks of 4 channels via MM4 series cards

Networked Audio

Yes (CobraNet)

Network Control

Yes (via audio network port)

Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

Mic Level: 4 kΩ / Line Level: 9.5 kΩ

Flexible I/O

16 I/O

Phantom Power

Yes (48V software selectable per input channel n – with MM Mic 4 card only)

GPIO & Relays

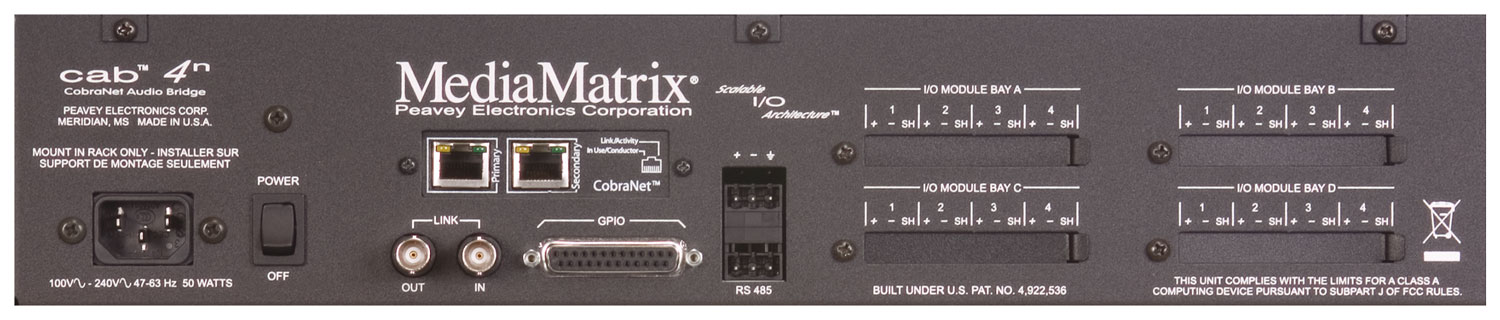

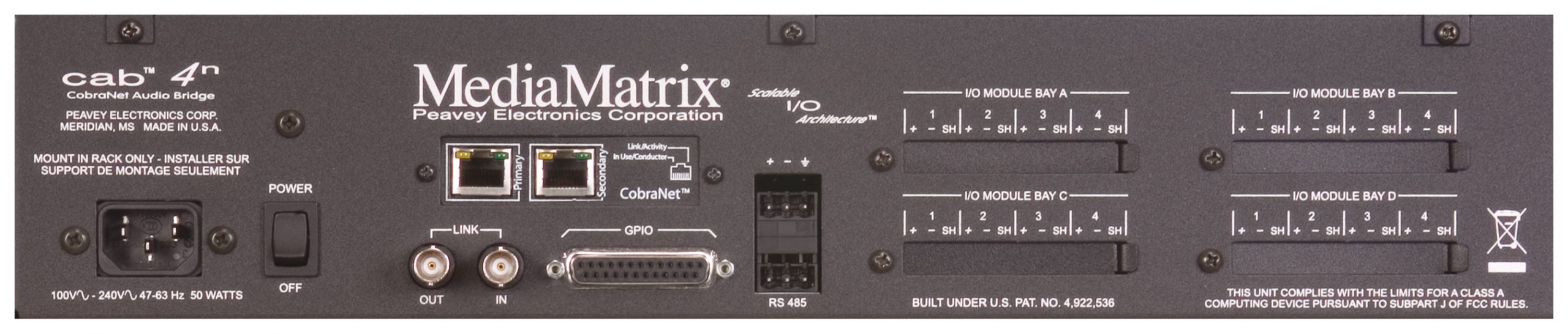

8 x configurable plus 4 x 'Form C' relays via 25 pin D Connector

Serial Bridging

Yes

Expansion-/Extension Card Slot

4

Input Connectors

via color coded Phoenix/Euro Connector on associated MM4 series I/O cards: MM-Line4 – black; MM-Mic4 – green; MM-Out4 – blue

Output Connectors

via color coded Phoenix/Euro Connector on associated MM4 series I/O cards: MM-Line4 – black; MM-Mic4 – green; MM-Out4 – blue

Enclosure Material

Steel Chassis

Rack Mount (19")

Yes (2U)

Net Weight

9.5 lbs (4.30 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

16.38" (416 mm)

AC Power Input

Universal Power Supply 100-240VAC 47-63 Hz

SKU

00510670
